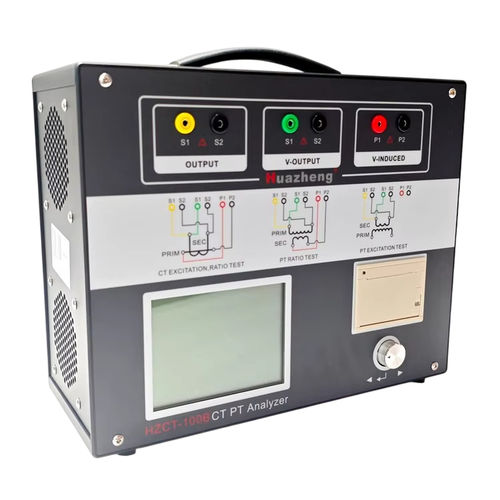

Transformer testing device HZCT-100B

voltagecurrentautomatic

The HZCT-100B CT PT Analyzer is a new product developed after extensively incorporating customer feedback and conducting in-depth theoretical research. It is based on the widely acclaimed FA Series Transformer Tester, produced by our company and widely used in the industry. The adoption of high-performance DSP and ARM technology, combined with advanced manufacturing processes, ensures stable and reliable performance. With a full range of features, a high degree of automation, and high efficiency, it is considered a leading product in China. The HZCT-100B is a professional testing instrument for transformers in the power industry. Configuration 1.Full-featured: The tester not only satisfies the testing requirements for various CTs (including TP class), such as excitation characteristics (volt-ampere characteristics), ratio, polarity, secondary winding resistance, secondary burden, ratio error, and phase displacement, but it can also be used to test various PTs, including the excitation characteristics of the electromagnetic unit, ratio, polarity, secondary winding resistance, ratio error, and phase displacement. 2.Automatically calculates key CT and VT parameters, including knee point voltage/current, 10% error curve, accuracy limit factor (ALF), instrument security factor (FS), second time constant (Ts), remanence coefficient (Kr), and saturated/unsaturated inductance, etc. 3.Tests meet various transformer standards, including IEC60044, GB1208 (-1), GB16847 (IEC60044-6), and others, with automatic selection of the appropriate standard based on transformer type and class.
