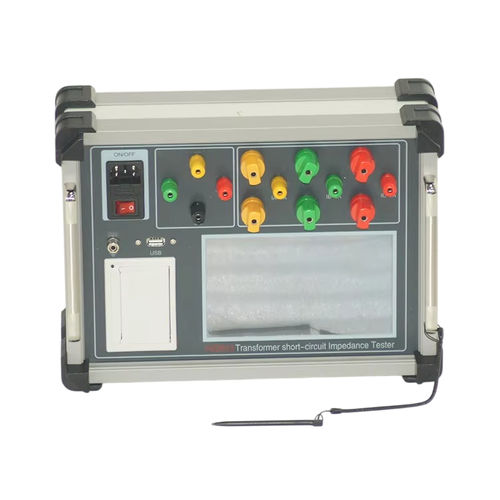

Impedance tester HZ2613

for transformersportablebenchtop

The HZ2613 Transformer Short-Circuit Impedance and No-Load Integrated Tester is the latest product launched by our company. The instrument uses a popular ARM processor with a 168 MHz main frequency and 128 MB of memory, expandable with a 4 GB memory card. It features a 7-inch HD color touch screen combined with the EmWin display interface, making the instrument user-friendly and easy to operate. The full touch-screen operation eliminates the need for a keyboard. The instrument supports database functionality, and data can be exported via a USB drive or transferred to a background computer through a data cable.The circuit design of the instrument is highly refined, with a unique approach that provides superior performance, powerful functionality, compact size, and light weight. It can not only test the no-load parameters of the transformer but also measure the harmonic content and waveform. Additionally, the instrument can record transformer no-load test curves, providing a reliable basis for transformer fault analysis. Main Functions And Features 1.The instrument features a 7-inch true-color LCD screen, capable of measuring voltage, current, angle, power, and other electrical parameters. It can also display voltage and current vector diagrams, making the information clear and intuitive on the same screen. 2.The instrument can measure no-load loss, load loss, and other parameters of the transformer. 3.It is capable of measuring single-phase and three-phase transformer impedance, reactance, resistance, impedance voltage percentage, and other related parameters.
