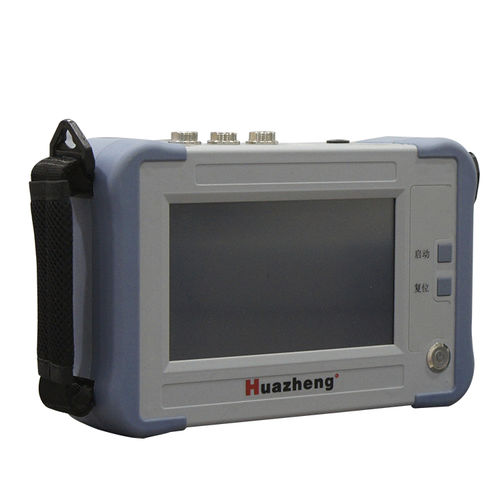

Capacitance tester HZ2141

for transformerscapacitorindustrial

This Capacitance Inductance Tester is specifically designed to address the challenges in measuring high-voltage shunt capacitor banks in substations. It complies with national standards, including GB3983.2-1989 "High-voltage Shunt Capacitors," DL/T840-2003 "Technical Conditions for the Use of High-voltage Shunt Capacitors," and JB5346-1998 "Series Reactors". It is developed primarily for the measurement of high-voltage parallel capacitor banks and reactors used in reactive power compensation devices.The Capacitance Inductance Tester utilizes a high-speed microprocessor to simultaneously collect both the voltage signal and current signal from the tested components. It automatically calculates important parameters such as capacitance, inductance, and other related values. The on-site measurement of capacitors does not require disconnecting the wires, simplifying the testing process and significantly improving operational efficiency.After testing, the Capacitance Inductance Tester automatically calculates the capacitive value of each phase and other relevant parameters, enabling easy identification of capacitor quality changes and detecting potential faults in the connecting conductors between devices. Features High-Voltage Capacitor and Reactor Measurement Instrument This instrument is capable of measuring the capacitance of a group of parallel capacitors, including both single-phase and three-phase capacitance, without the need to remove the wiring. During the measurement process, the instrument can display various parameters, such as the measured capacitance or inductance, voltage, current, frequency, impedance, phase angle, and other relevant data.
