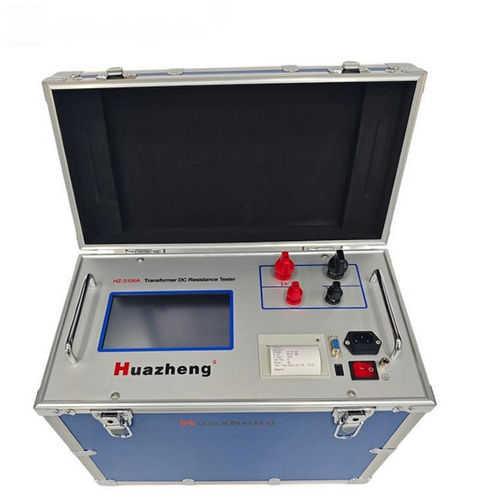

Digital microhmmeter HZ-3100A

bench-toplow-resistance

Product overview
The DC winding resistance test is required during transformer production, installation, commissioning and preventive inspections. It detects faulty welds, loose connections, missing units, open circuits and other manufacturing defects or hidden faults after operation. The HZ-3100A is a compact, high‑output DC winding resistance tester designed for fast, accurate measurements on power and instrument transformers. The instrument is microcontroller‑controlled and provides automatic discharge, high automation and user safeguards.

Key features

• Microcontroller control with high automation.
• Advanced power supply with multiple current steps and wide measurement range; automatic current selection by load.
• Counter‑EMF protection and automatic discharge with audible alarm.
• Fast response and intelligent power management to reduce heat and save energy.
• 320×240 dot‑matrix 65K true‑color LCD with 4 significant digits.
• Permanent calendar and power‑down data retention; stores up to 1000 test records.
• RS232 and USB interfaces for PC communication and U‑disk storage; built‑in panel micro‑printer.

Technical summary
Display | LCD | 4 significant digits
Data save | 1000 sets
Power supply | AC 220 V ±10 V, 50 Hz ±1 Hz | Fuse 10 A

Physical
Power consumption | 1000 W
Size | 440 × 245 × 395 mm
Weight | Host 19.8 kg; cable box 7.5 kg

Measurement ranges and performance
Test current | 5 A, 10 A, 20 A, 50 A, 100 A
Measurement range | 50 μΩ – 100 mΩ (100 A); 100 μΩ – 400 mΩ (50 A); 200 μΩ – 1 Ω (20 A); 500 μΩ – 2 Ω (10 A); 1 mΩ – 4 Ω (5 A)
Accuracy | ±(0.2% + 2 digits)
Resolution | 0.1 μΩ

Specifications

• Model: HZ-3100A
• Brand: Huazheng
• Test currents: 5 A, 10 A, 20 A, 50 A, 100 A
• Measurement ranges: see measurement ranges above
• Accuracy: ±(0.2% + 2 digits)
• Resolution: 0.1 μΩ
• Display: 320×240 dot‑matrix 65K true‑color LCD
• Data storage: 1000 sets (power‑down retention)
• Interfaces: RS232, USB
• Built‑in panel micro‑printer
• Protection: counter‑EMF protection, automatic discharge with audible alarm
• Power supply: AC 220 V ±10 V, 50 Hz ±1 Hz; Fuse 10 A
• Power consumption: 1000 W
• Dimensions: 440 × 245 × 395 mm
• Weight: Host 19.8 kg; cable box 7.5 kg
• Intelligent power management
