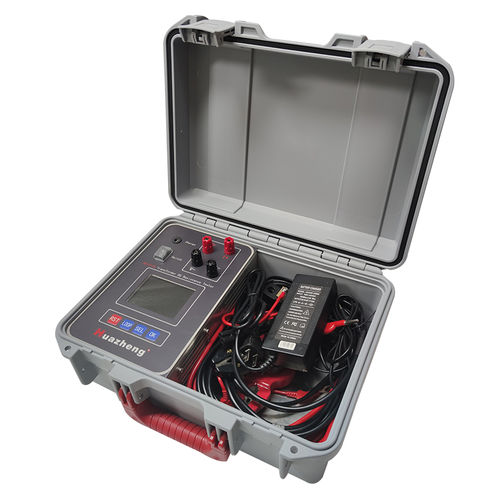

Low-resistance tester HZ-3110

stator windingfor transformersindustrial

To meet the fast measurement requirements for DC resistance in transformers, we developed the HZ-3110 DC Resistance Tester. The instrument features advanced technology, a compact size, lightweight design, high output current, and other notable characteristics.The device is controlled by a microcontroller, offering a high degree of automation and automatic discharge functions. It is a high-precision testing instrument that allows for simple and direct measurement of transformer DC resistance. Configuration 1.The entire instrument is controlled by a high-speed microcontroller (SCM), offering a high degree of automation and simple operation. 2.The instrument incorporates advanced power supply technology with multiple current settings and a wide test range, making it suitable for measuring the DC resistance of large and medium-sized transformers. 3.It features complete circuit protection, ensuring reliable operation. 4.Equipped with a discharge alarm and clear discharge indicators, it helps reduce the risk of misuse. 5.The instrument has a quick response time and can automatically switch to the load tap state during measurement, with real-time data refresh. 6.Intelligent power management technology ensures that the instrument operates in a minimum power state, effectively saving energy and reducing heat generation. 7.It features a 320 x 240 pixel ultra-small matrix LCD display with 65K true colors. 8.The instrument is equipped with a calendar clock and power loss storage, capable of storing up to 1,000 sets of data, which can be accessed at any time.
