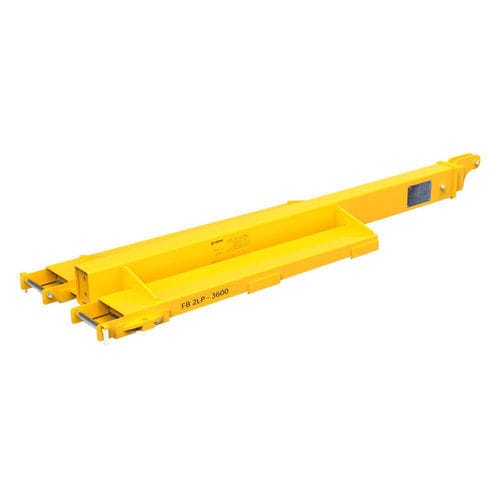

Lifting forklift truck attachment FB2LP-3600

General
The Forklift Boom FB2LP-3600 is a low-profile, two-section telescopic boom designed for unloading marble and granite sheets from closed van containers where available height is limited. Constructed from heavy gauge Australian rectangular tube steel (AS1163-450 LO), the boom meets current safety guidelines and provides a compact, rigid lifting extension for pallet forks.

Features

• Telescoping design with two rectangular sections for compact stowage and extended reach
• Extension stop prevents the boom from being pulled out completely
• Secures to fork blades with two bolts per fork pocket and additional restraint pins for stable attachment

Specifications
Manual telescope range: 2121 - 3603 mm (84.5" - 141.9")
Increment: 494 mm (19.4")
Fork pocket size (slip onto fork): 165 x 65 mm (6.5" x 2.6")
Fork pockets center to center: 377 mm (14.8")
Working load limit (WLL): Retracted 2400 kg (5291 lb); Extended 600 kg (1323 lb)
Net weight: 134 kg (295 lb)
Gross weight: 144 kg (318 lb)
Packaging dimensions: L 2280 x W 640 x H 370 mm (L 89.8" x W 25" x H 14.6")

Note
Three attachment options are available for connecting Aardwolf Lifters to the boom: Combo Swivel (chain/lug), Forged Aluminium Swivel Shackle, or 3.0T Bow Shackle. Actual lift capacities depend entirely on the capacity and configuration of the forklift used.

Technical specifications

• Model / Product code: FB2LP-3600
• Manual telescope range: 2121 - 3603 mm (84.5" - 141.9")
• Increment: 494 mm (19.4")
• Fork pocket size (slip onto fork): 165 x 65 mm (6.5" x 2.6")
• Fork pockets center to center: 377 mm (14.8")
• Working load limit (WLL): Retracted 2400 kg (5291 lb); Extended 600 kg (1323 lb)
• Net weight: 134 kg (295 lb)
• Gross weight: 144 kg (318 lb)
• Packaging dimensions: L 2280 x W 640 x H 370 mm (L 89.8" x W 25" x H 14.6")
• Material: Heavy gauge Australian rectangular tube steel AS1163-450 LO
