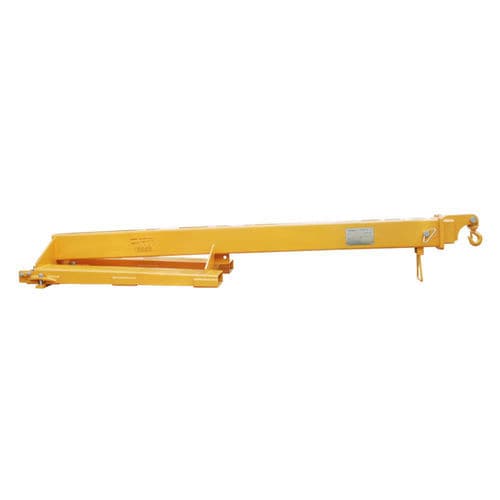

Lifting forklift truck attachment FB4-4800

rigid hitch

Overview
The FB4-4800 Forklift boom is a telescoping two-section rectangular-tube boom designed for slip-on mounting to forklift forks. Manufactured from Australian rectangular tube steel, it is intended for use on 5 to 8-tonne forklift trucks and provides extended reach with clear driver visibility.

Key features

• Telescoping two-section rectangular-tube design with manual extension
• Extension stop prevents the boom being pulled completely out
• Secured to fork blades by two bolts per fork pocket plus restraint pins
• Slip-on mounting for fork pockets 193 x 81 mm (7.6 x 3.2 in)

Technical specifications

• Manual telescope range: 2800–4800 mm (110–189 in)
• Increment: 1000 mm (39.4 in)
• Fork pocket size (slip-on): 193 x 81 mm (7.6 x 3.2 in)
• Fork pocket centre-to-centre: 520 mm (20.5 in)
• Working load limit (retracted): 3000 kg (6614 lb)
• Working load limit (extended): 1000 kg (2204 lb)
• Net weight: 198 kg (437 lb)
• Gross weight: 210 kg (463 lb)
• Packaging dimensions: L 2850 x W 820 x H 580 mm (L 112.2 x W 32.3 x H 22.8 in)
• Material: Australian rectangular tube steel

Compatibility & safety notes
Boom lift capacity depends entirely on the capacity and stability of the host forklift. Ensure the forklift and forks are rated for the intended loads, fit fork pockets of the specified size, and secure the boom using the provided bolts and restraint pins. Only qualified operators should install and use the boom.
