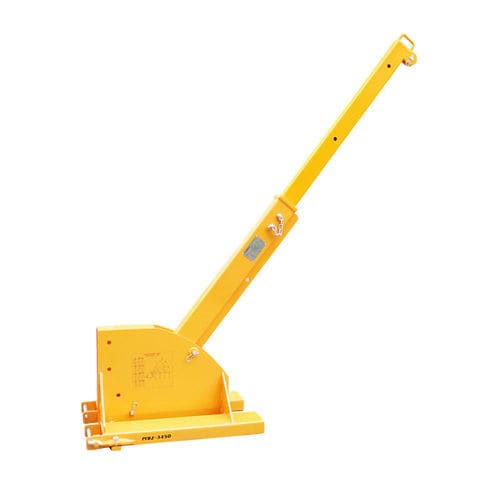

Lifting forklift truck attachment PFB2-3450

rigid hitch

Overview
The Pivot Boom model PFB2-3450 is a forklift-mounted telescopic pivot boom that provides adjustable outreach and additional lift height. The tilt facility compensates for hook and sling length when lifting with a jib attachment.

Features

• Telescopic extension designed to prevent full extraction
• Secure attachment to fork blades via two rear bolts per fork pocket and restraint pins
• Tilt adjustment from 0 to 52°
• Slip-on fork design with standard fork pocket dimensions

Specifications
Model: PFB2-3450
Manual telescope: 1930 - 3412 mm | 76 in - 134.3 in
Increment: 494 mm | 19.4 in
Fork pocket (slip-on) size: 154 x 58 mm | 6.1 in x 2.3 in
Fork pocket centre: 366 mm | 14.4 in
Working load limit (WLL): Retracted 1500 kg | 3307 lb; Extended 600 kg | 1322 lb
Net weight: 196 kg | 432 lb
Gross weight: 206 kg | 454 lb
Packaging dimensions: L 2250 x W 620 x H 730 mm | L 88.6 x W 24.4 x H 28.7 in

Compatibility & Safety
Lift capacities depend entirely on the capacity and configuration of the forklift in use. Verify forklift rated capacity, load centre and stability before operation. Use certified slings, follow local standards and manufacturer guidance.

Technical details

• Model: PFB2-3450
• Manual telescope range: 1930 - 3412 mm (76 - 134.3 in)
• Increment: 494 mm (19.4 in)
• Fork pocket (slip-on): 154 x 58 mm (6.1 x 2.3 in)
• Fork pocket centre: 366 mm (14.4 in)
• Working load limit: Retracted 1500 kg / Extended 600 kg (3307 lb / 1322 lb)
• Tilt adjustment: 0 - 52°
• Net weight: 196 kg (432 lb)
• Gross weight: 206 kg (454 lb)
• Packaging: 2250 x 620 x 730 mm (88.6 x 24.4 x 28.7 in)
