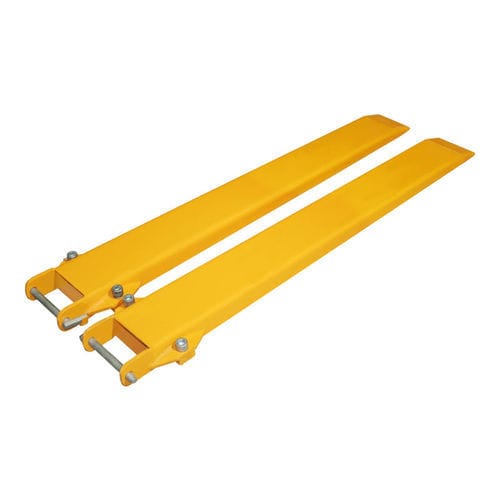

Forklift truck fork extension AFE-1500

for long, narrow loadsrobust

Description
The extra heavy-duty fork extensions AFE-1500 provide a fast and efficient solution to handle long or bulky light loads. They slide over existing fork blades and are secured by tightening two bolts at the rear of each extension and by a heel pin that fits behind the fork blades. Ideal for loading/unloading from pickup beds and extending forklift reach for long loads.

Specifications
Metric / Imperial
Total length: 1602 mm / 63"
Working (effective) length: 1500 mm / 59"
Working load limit (WLL): 2500 kg / 5511 lb
Net weight: 74 kg / 163 lb
Gross weight: 78 kg / 172 lb
Packaging dimensions: L1600 x W240 x H240 mm / L63" x W9.4" x H9.4"

Features / Technical specifications

• Product code: AFE-1500
• Sold as: Pair
• Compatibility: Designed to slide over 100 mm fork blades
• Construction: Extra heavy-duty; double side walls; full plate underside
• Attachment: Slides over existing fork blades; locked by tightening two bolts at the back of each extension; restrained by a heel pin behind the fork blades
• Total length: 1602 mm
• Working length: 1500 mm
• Working load limit (WLL): 2500 kg (5511 lb)
• Net weight: 74 kg (163 lb)
• Packaging dimensions: 1600 x 240 x 240 mm
