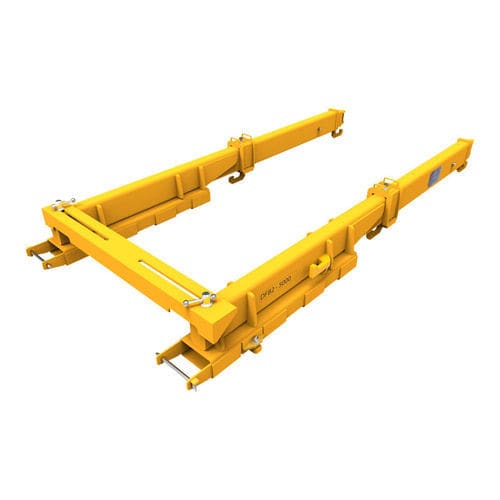

Lifting forklift truck attachment DFB2-5000

with hooks

General description of DFB2-5000 Forklift Boom
The Aardwolf Double Forklift Boom (DFB2-5000) is a two-section telescoping boom attachment designed for precise and stable handling of heavy slab bundles. Constructed from rectangular tube steel, it is intended for removing bundles of marble and granite slabs from closed-top containers. The open design between the fork booms allows full insertion into containers for secure gripping and improved load stability. The unit has a working load limit of 5,000 kg (11,023 lbs) and a powder-coated finish for corrosion resistance in heavy-duty use.

Key Features of the Forklift Boom

• Heavy-duty capacity: supports up to 5,000 kg (11,023 lbs).
• Telescoping design: two-section rectangular tube steel booms for extended reach and flexible lifting.
• Open fork booms: full insertion into containers to improve balance and stability of slab bundles.
• Optimized for 8-tonne (and larger) forklifts.
• Quick hooking: open hooks for fast attachment of flat web sling eyes.
• Adjustable sliding hook: inner sliding hook with multiple positions for precise lifting control.
• Adjustable connection bar: fork width adjustable from 300 to 1,300 mm (11.8" - 51.2") to fit various bundle sizes.

Specifications
Metric | Imperial
Adjustable Connection Bar Distance: 300 - 1300 mm | 11.8" - 51.2"
Working load limit: 5000 kg | 11023 lbs
Net weight: 657 kg | 1448 lbs
Gross weight: 687 kg | 1514 lbs
Packaging dimensions: L.3400 x W.760 x H.515 mm | L.133.9" x W.29.9" x H.20.3"

Why choose the Forklift Boom DFB2-5000?

• Designed for heavy lifting of large stone slabs with stable load support.
• Versatile adjustment options: connection bar and sliding hooks accommodate different bundle sizes.
• Enables safe and efficient removal of slabs from closed-top containers, reducing manual handling.
• Backed by Aardwolf quality assurance and warranty.

Technical specifications

• Model / Product Code: DFB2-5000
• Working load limit (WLL): 5000 kg (11,023 lbs)
• Material: rectangular tube steel construction
• Finish: powder-coated for corrosion resistance
• Telescoping: two-section telescoping boom
• Adjustable connection bar (fork width): 300 - 1300 mm (11.8" - 51.2")
• Adjustable sliding hook: multiple positions
• Net weight: 657 kg (1448 lbs)
• Gross weight: 687 kg (1514 lbs)
• Packaging dimensions: L 3400 mm x W 760 mm x H 515 mm (L 133.9" x W 29.9" x H 20.3")
• Intended application: removal of slab bundles (marble, granite) from closed-top containers; optimized for 8-tonne and larger forklifts
