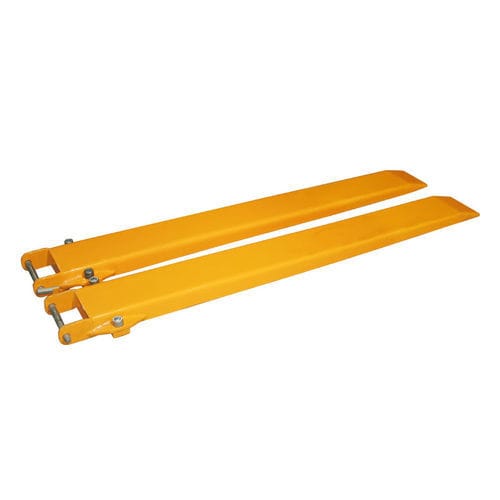

Forklift truck fork extension FES-2000

for long productsfor trucks

General
A fast and efficient solution for handling lightweight bulk loads. Fork blade extensions increase reach for loading or unloading material from pickup trucks and other vehicles. The extensions slide over existing fork blades and are secured by tightening two bolts at the rear of each extension; a heel pin provides additional retention behind the fork blades.

Operation / Installation

• Slides over the fork blades and aligns with the heel pin location.
• Secured by two rear bolts per extension for positive clamp.
• Heel pin adapts to existing fork blades to prevent axial movement.

Recommended use
Designed to extend fork reach and facilitate rapid loading/unloading of lightweight bulk materials or items from the rear of utility vehicles and trucks; suitable for material handling tasks requiring increased fork length.

Specifications / Technical data

• Product name: Fork Extensions (Standard)
• Product code: FES-2000
• Pack: pair
• Total length: 2102 mm (82.8 in)
• Working length: 2000 mm (78.7 in)
• Working load limit (WLL): 1500 kg (3307 lb)
• Net weight: 62 kg (137 lb)
• Gross weight: 85 kg (187 lb)
• Packaging dimensions: L2100 x W270 x H180 mm (L82.7 x W10.6 x H7.1 in)
• Brand: Aardwolf
