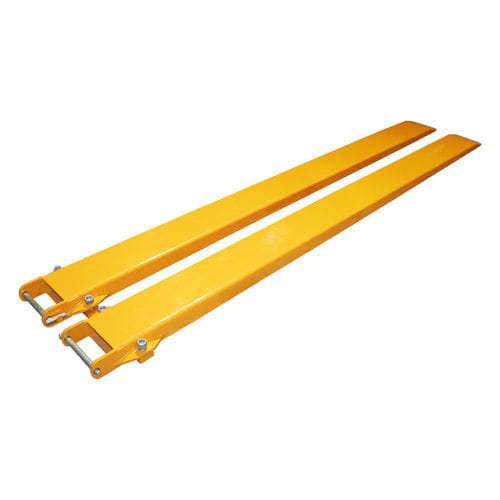

Truck fork extension AFE-2500

for forklift trucks

Overview
The extra heavy-duty fork extensions are designed with double side walls and a full underside plate to provide a reinforced extension of existing fork blades. They slide over the forks and are secured by tightening two bolts at the rear of each extension and by inserting a heel pin behind the fork blades. Intended for fast, efficient handling of lightweight bulk loads and for loading/unloading material from the rear of pick-up trucks.

Specifications
Metric / Imperial
Length: 2500 mm / 98.4"
Working load limit (WLL): 2500 kg / 5511 lb
Net weight: 122 kg / 269 lb
Gross weight: 128 kg / 282 lb
Packaging dimension: L.2600 x W.270 x H.270 mm / L.102.4" x W.10.6" x H.10.6"
Sold: in pair
Product code: AFE-2500

Technical features

• Length: 2500 mm
• Working load limit (WLL): 2500 kg
• Net weight (pair): 122 kg
• Gross weight (pair): 128 kg
• Packaging dimensions: 2600 x 270 x 270 mm
• Locking method: two rear bolts per extension + heel pin
• Construction: double side walls and full underside plate
• Intended use: handling lightweight bulk loads; loading/unloading from pick-up trucks
• Presentation: sold in pair
• Product code: AFE-2500

Installation and handling

• Slide extensions over the existing fork blades until seated.
• Tighten the two bolts on the rear of each extension to clamp onto the fork blade.
• Insert the heel pin to secure the extension behind the fork blade.
• Verify fit and retention before use and inspect regularly for wear.
