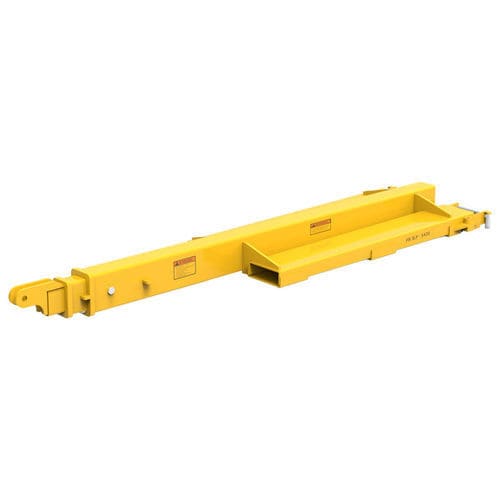

Lifting forklift truck attachment FB3LP-5420

rigid hitch

General
The forklift boom FB3LP-5420 is a low-profile telescopic two-section rectangular tube steel boom designed for unloading marble and granite slabs from closed van containers where height is critical. It is manufactured from heavy gauge Australian rectangular tube steel (AS1163-450 LO) and complies with current safety guidelines.

Features

• Manual telescoping range with positive stops; extension designed to prevent full withdrawal.
• Secures to fork blades with two rear bolts per fork pocket and restraint pins.
• Durable powder-coat finish for heavy-duty handling.

Specifications
Metric / Imperial
Manual telescope: 2210 - 5410 mm / 87" - 213"
Increment: 800 mm / 31.5"
Fork pocket (slip onto fork): 165 x 65 mm / 6.5" x 2.6"
Fork pocket center-to-center: 377 mm / 14.8"
Working load limit: Retracted 2400 kg; Extended 300 kg / 5291 lb; 661 lb
Net weight: 162 kg / 357 lb
Gross weight: 172 kg / 379 lb
Packaging dimensions: L.2400 x W.640 x H.400 mm / L.94" x W.25" x H.15.7"

Attachment options

• Combo swivel, chain, lifting lug: allows articulation between boom and load, helps prevent slab breakage on rough terrain and enables lowering into confined spaces.
• Forged aluminium swivel shackle: compact swivel that attaches directly to the boom and Aardwolf lifting clamp for maximum reach inside containers.
• Bow shackle 3.0T: general-purpose shackle for secure attachments.

Notes
Boom lift capacities depend on the capacity of the forklift used.

Technical / product data

• Brand: Aardwolf
• Model / product code: FB3LP-5420
• Design: Low-profile telescoping two-section rectangular tube steel
• Material standard: AS1163-450 LO heavy gauge Australian rectangular tube steel
