Lifting forklift truck attachment FB1-2720

with hooks

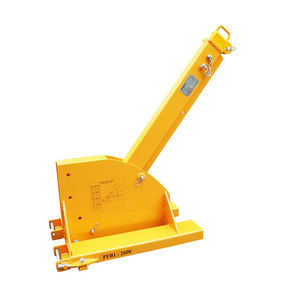

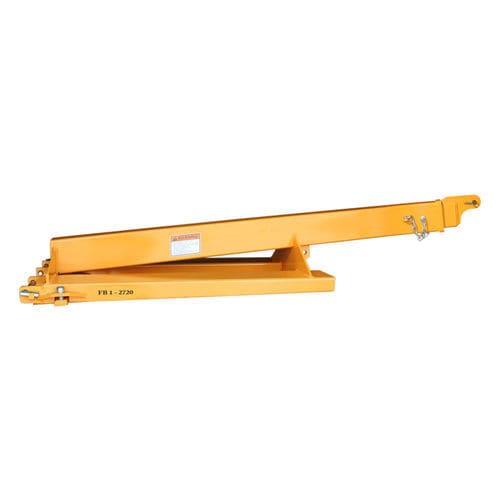

General description of FB1-2720 Forklift Boom
The FB1-2720 Forklift Boom is a telescopic two-section steel attachment designed for 2.0–2.5 tonne forklifts. Constructed from high-strength Australian rectangular tube steel (AS1163-450 LO, 450 MPa), it delivers stable load handling and improved visibility in confined spaces such as containers and workshops. Four hook positions provide variable reach and lifting capacity to suit typical on-site material handling tasks. A 12-month warranty is included.

Key features of the Forklift Boom

• Heavy-duty rectangular steel construction (AS1163-450 LO) for consistent structural performance.
• Telescopic two-section manual design, extends from 975 mm to 2,724 mm with four hook positions.
• Working Load Limit (W.L.L.) ranges from 2,000 kg (retracted) to 600 kg (extended), dependent on forklift capacity.
• Mechanical locking pins secure boom extension during handling.
• Compact geometry retains operator visibility and ensures stable load control in confined areas.
• Compatible with 2.0–2.5 tonne forklifts and fork pockets sized 154 × 61 mm.

Specifications

• Model / Product Code: FB1-2720
• Material: High-strength Australian rectangular tube steel (AS1163-450 LO, 450 MPa)
• Telescopic sections: Two-section manual telescope
• Stroke / Range: 975 – 2,724 mm (manual extension)
• Increment: 557 mm
• Fork pockets size: 154 × 61 mm
• Hook positions: Four
• Working Load Limit (W.L.L.): Retracted 2,000 kg; Extended 600 kg — depends on forklift capacity
• Safety: Mechanical locking pins for secure boom extension
• Net weight: 90.7 kg
• Gross weight: 99.5 kg
• Packaging dimensions: 1,750 × 620 × 410 mm
• Recommended forklift capacity: 2.0–2.5 tonne
• Warranty: 12 months

Applications and compliance

• Typical applications: Lifting and handling stone slabs, glass panels and other heavy materials in confined spaces.
• Compliance: OSHA 29 CFR 1910.178; EU Machinery Directive 2006/42/EC; Australian Standard AS 4991-2004.

Why choose the Forklift Boom FB1-2720?
Compact telescopic design provides extended reach while remaining easy to handle and transport. Mechanical locking pins and certified construction enable secure and repeatable attachment to compatible forklifts, making the FB1-2720 suitable for warehouses, construction sites and industrial environments where space and lift control are critical.
