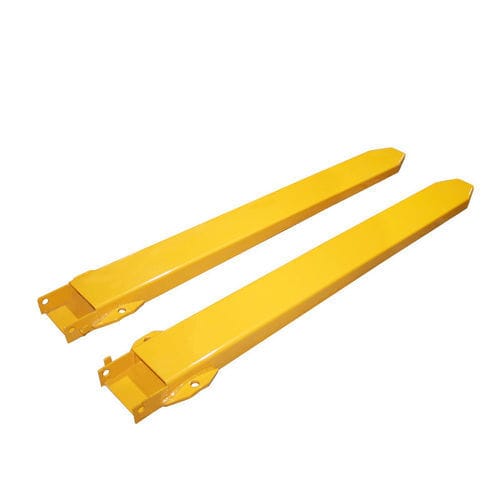

Truck fork extension FES-1500

for vehicles

Overview
A method for extending fork length to handle lightweight bulk loads and to facilitate loading/unloading from the rear of pick-up trucks and similar vehicles.

Specifications (Metric / Imperial)
Working length: 1500 mm / 59 in
Working load limit (WLL): 1500 kg / 3307 lb
Net weight (pair): 46 kg / 101 lb
Gross weight (pair): 56 kg / 123 lb
Packaging dimensions: L1600 x W270 x H180 mm / L63 x W10.6 x H7.1 in

Features / Technical specifications

• Product code: FES-1500
• Sold as: pair
• Working length: 1500 mm
• Working load limit (WLL): 1500 kg
• Net weight (pair): 46 kg
• Gross weight (pair): 56 kg
• Packaging dimensions: L1600 x W270 x H180 mm
• Fitment: slides over existing fork blades
• Attachment: secured by tightening two bolts at the rear of each extension and additionally restrained by a heel pin that fits behind the fork blades
• Application: extends fork reach for loading/unloading from pick-up trucks and similar vehicles
