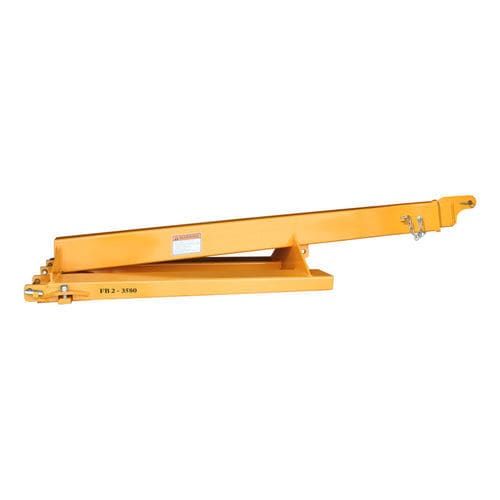

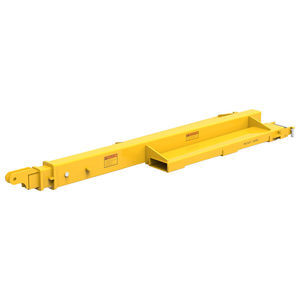

Lifting forklift truck attachment FB2-3580

rigid hitch

General
The FB2-3580 forklift boom is manufactured from Australian rectangular tube steel meeting AS1163-450 LO. It is a telescoping two-section rectangular-tube boom designed for use on 3-tonne forklift trucks and larger, providing extended reach while maintaining visibility for the operator.

Applications
Suitable for lifting and positioning long or bulky loads in industrial settings, loading/unloading operations and maintenance tasks where additional reach is required.

Features

• Telescoping extension designed to prevent full extraction of inner section
• Secures onto fork blades with two bolts at the rear of each fork pocket plus restraint pins
• Manual telescoping action with defined increments for controlled extension

Note
Working load limits depend entirely on the capacity and configuration of the forklift used.

Specifications
Metric | Imperial
Fork pockets (W×H): 165×65 mm | 6.5" × 2.6"
Fork pockets centre to centre: 377 mm | 14.8"
Telescoping range (manual): 2107 – 3580 mm | 83" – 141"
Increment: 491 mm | 19.3"
Working load limit: Retracted: 1500 kg; Extended: 700 kg | 3307 lb; 1543 lb
Net weight: 136 kg | 300 lb
Gross weight: 146 kg | 322 lb
Packaging dimensions: L2250 × W630 × H550 mm | L88.6" × W24.8" × H21.7"

Technical specifications

• Material: Australian rectangular tube steel, AS1163-450 LO
• Model: FB2-3580
• Type: Telescoping two-section rectangular-tube boom
• Intended forklift capacity: 3-tonne forklifts and larger
• Fork pocket size: 165×65 mm
• Fork pockets centre-to-centre: 377 mm
• Telescoping range: 2107 – 3580 mm
• Increment: 491 mm
• Working load limit (retracted/extended): 1500 kg / 700 kg
• Net weight: 136 kg; Gross weight: 146 kg
• Attachment: Secured to fork blades by two bolts at rear of each fork pocket and restraint pins
