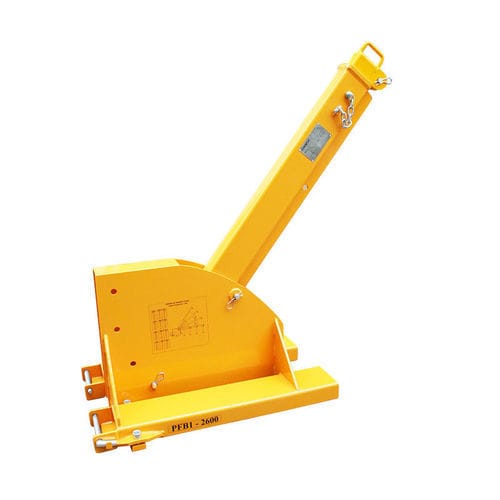

Lifting forklift truck attachment PFB1-2600

rigid hitch

General

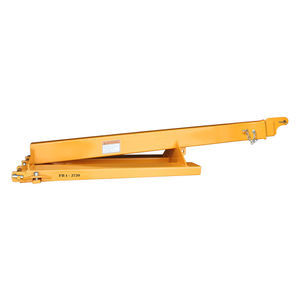

Pivot Boom model PFB1-2600 is a slip-on, adjustable boom for forklifts equipped with fork pockets. The manual telescope extends from 1500 to 2600 mm and the tilt facility compensates for hook and sling length when lifting with a jib attachment.

Features

• Manual telescopic extension with 560 mm increments
• Extension designed to prevent full extraction of the inner section
• Secures to fork blades with two bolts at the back of each fork pocket and restraint pins
• Slip-on engagement for forks designed with fork pockets: 154 x 58 mm; fork pocket length 366 mm
• Working load limit: Retracted 1500 kg; Extended 500 kg

Specifications

• Model: PFB1-2600
• Manual telescope: 1500 - 2600 mm | 59" - 102.4"
• Increment: 560 mm | 22"
• Fork engagement (slip onto fork): 154 x 58 mm | 6.1" x 2.3"
• Fork pockets length: 366 mm | 14.4"
• Working load limit (WLL): Retracted 1500 kg | 3307 lb — Extended 500 kg | 1102 lb
• Net weight: 151 kg | 333 lb
• Gross weight: 160 kg | 353 lb
• Packaging dimensions: L 1750 x W 620 x H 710 mm | L 68.9" x W 24.4" x H 28"

Note
Boom lift capacities depend entirely on the capacity and stability of the forklift used; verify forklift specifications and comply with applicable safety standards.

Technical details

• Model: PFB1-2600
• Manual telescope range: 1500 - 2600 mm (59" - 102.4")
• Increment (extension step): 560 mm (22")
• Fork engagement (slip onto fork designed with fork pockets): 154 x 58 mm (6.1" x 2.3")
• Fork pockets length: 366 mm (14.4")
• Working load limit (WLL): Retracted 1500 kg (3307 lb) — Extended 500 kg (1102 lb)
• Net weight: 151 kg (333 lb)
• Gross weight: 160 kg (353 lb)
• Packaging dimensions: L 1750 x W 620 x H 710 mm (L 68.9" x W 24.4" x H 28")
