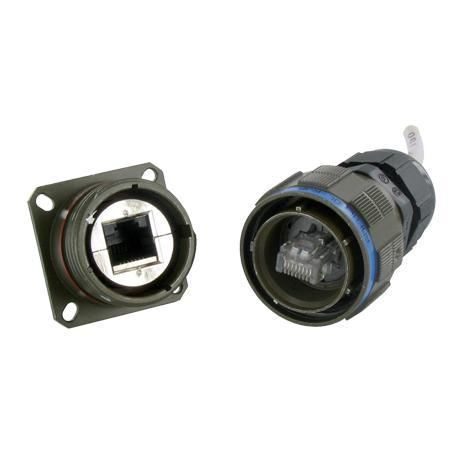

Data connector module RJF TV

RJ45Ethernetcircular

Overview
The Amphenol Socapex RJF TV rugged Ethernet connector series is a range of high-performance connectors designed to provide robust and reliable Ethernet connectivity in harsh and demanding environments. Available in Cat5e, Cat6 and Cat6A variants, these connectors feature a ruggedized metal housing, a push-pull locking mechanism and integrated sealing for protection against dust, fluids and mechanical stress. They are backward-compatible with standard RJ45 interfaces and support a variety of cable types and sizes.

Key features

• Sealed against fluids and dust (IP68)
• Shock, vibration and traction resistant
• No special tools required for field cabling operations
• Mechanical coding/polarization with 4 positions

Applications

• Battlefield communications, C4ISR
• Data acquisition and transmission in harsh environments
• Armoured vehicles
• Battleships
• Rail Mass Transit

Technical information
More features

• Improved EMI protection
• Tri-Start Thread coupling mechanism (MIL-DTL-38999 Series III type) with anti-decoupling device - Shell size 19
• Robust metallic shells
• RJ45 cordset retention in the plug: 100 N (axial)
• Mating cycles: minimum 500 cycles
• Compatible with cable diameters from 6 mm to 13 mm

Data transmission

• Cat.5e: Ethernet Class D per ISO/IEC 11801 — supports 10Base-T, 100Base-TX and 1000Base-T up to 100 MHz (TIA/EIA568B)
• Cat.6: Ethernet Class E per ISO/IEC 11801 — supports 10Base-T, 100Base-TX and 1000Base-T up to 250 MHz (TIA/EIA568B)
• Cat.6A: Ethernet Class Ea per ISO/IEC 11801 — supports 10Base-T, 100Base-TX, 1000Base-T and 10GBase-T up to 500 MHz (TIA/EIA568B)

Environmental protection

• Sealing: IP68 (mated plug & receptacle or cap & receptacle)
• Salt spray resistance: 48 h for aluminium shell with nickel, black zinc cobalt plating; >500 h for aluminium shell with olive drab cadmium plating; 500 h with marine bronze shell
• Fire retardant / Low smoke: UL94 V0 and NF F 16-101 & 16-102
• Vibrations: 10–500 Hz, 10 g, 3 axes — no discontinuity >10 ns
• Compounded versions tested per NAS 1599 (5–3000 Hz, 20 g, 12 h)
• Shocks: IK06 — equivalent test: 250 g weight drop from 40 cm onto mated pair
• Humidity: 21 days at 43°C, 98% humidity
• Operating temperature range: -40°C to +85°C

Caractéristiques / spécifications techniques

• Series: RJF TV
• Sealing rating: IP68 (mated)
• Coupling: Tri-Start Thread (MIL-DTL-38999 Series III type) with anti-decoupling
• Shell size: 19 (Tri-Start thread coupling)
• Material: robust metallic shells (various platings available)
• RJ45 cordset axial retention: 100 N
• Mating durability: ≥500 mating cycles
• Cable diameter compatibility: 6 mm to 13 mm
• Data grades supported: Cat5e (up to 100 MHz), Cat6 (up to 250 MHz), Cat6A (up to 500 MHz, including 10GBase-T)
• EMI protection: metallized insert for full shielding continuity; reinforced 360° shielding plug kits available
• Salt spray: various plating-dependent levels (48 h / >500 h / 500 h depending on shell/plating)
• Fire/Smoke: UL94 V0, NF F16-101 & 16-102
• Vibration spec: 10–500 Hz, 10 g, 3 axes
• Shock spec: IK06; compounded test per NAS 1599 (5–3000 Hz, 20 g, 12 h)
• Humidity test: 21 days at 43°C, 98% RH
• Temperature range: -40°C to +85°C
