RF connector 2M Python

right-anglelow-profilecircular

Description

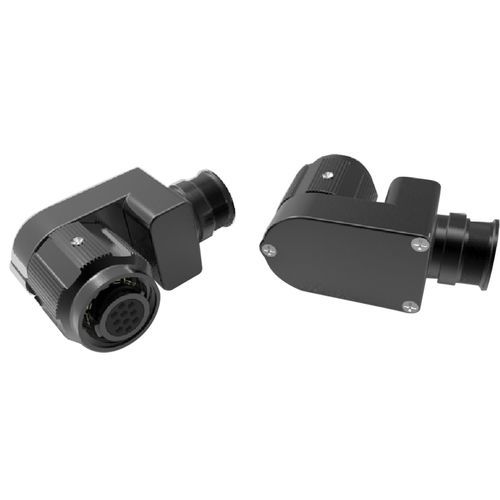

The Amphenol micro miniature 2M Python connectors are the low-profile right-angle plug variants of the 2M801, 2M804 and 2M805 series. They feature thread or quick-disconnect coupling with integrated backshells (plug only), delivering robust EMI shielding and compact panel installation. Twelve contact arrangements are available, covering from 3 to 130 contacts. Standard terminations are crimp or solder cup (contact size 23). Construction materials include aluminum (olive drab cadmium, black zinc nickel, nickel, Durmalon plated) and stainless steel (passivated, nickel plated).

Key features

• Micro‑miniature circular connector
• Thread or quick‑disconnect coupling
• Integrated backshells (plug only)
• Excellent EMI shielding
• Available in 2M801, 2M804 and 2M805 arrangements
• Crimp or solder cup terminations, contact size 23

Applications

• Battlefield communications and C6ISR systems
• Ground vehicles
• Military avionics and commercial aircraft systems
• Missiles, UAVs and airborne platforms
• Soldier‑worn equipment

Product benefits

• Space saving: low‑profile right‑angle shell reduces panel protrusion
• Maintenance friendly: rear removable plate eases contact extraction
• Flexible wiring: multiple rear cable entry options per connector size

Materials & Platings

• Aluminum: Olive drab cadmium, Black Zinc Nickel, Nickel, Durmalon plated
• Stainless steel: Passivated, Nickel plated

Contacts types & terminations

• 12 contact arrangements (3 to 130 contacts depending on arrangement)
• Contact size 23
• Crimp or solder cup

Environmental Characteristics

• Mating cycles: 500 to 2,000
• Operating temperature: -65°C to 175°C
• Corrosion resistance: 48 to 500 hours depending on material and plating
• Ingress protection: IPX7 when mated and fully cabled

Electrical characteristics

• Shell‑to‑shell conductivity: 2.5 mΩ max
• Insulation resistance (ambient): 5·10³ MΩ
• Contact rating: up to 5 A

Technical specifications

• Model: 2M Python (low‑profile right‑angle plug)
• Series compatibility: 2M801, 2M804, 2M805
• Contact arrangements: 12 available (3 to 130 contacts)
• Contact size & terminations: size 23; crimp or solder cup
• Materials: Aluminum (various platings), Stainless steel (passivated, nickel plated)
• Mating cycles: 500–2,000
• Temperature range: -65°C to 175°C
• Ingress protection: IPX7 when mated and fully cabled
• Shell‑to‑shell conductivity: 2.5 mΩ max
• Insulation resistance: 5·10³ MΩ
• Contact rating: up to 5 A
