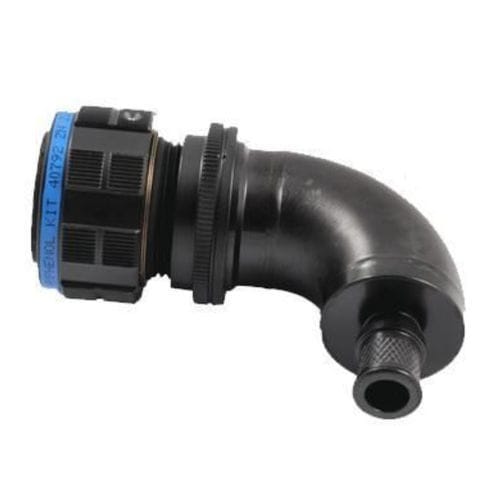

Data connector RJFIELD™

USBEthernetscrew-in

Description
RJFIELD™ and USBFIELD™ kits include all components required to build a fully integrated 360° EMI shielding solution for RJ and USB connectors. Engineered for applications requiring certified electromagnetic protection, the kits are compatible with MIL‑DTL‑38999 Series III and MIL‑DTL‑26482 form factors and support TEMPEST, COMSEC and SDIP‑27 requirements.

Key features

• 360° EMI shielding for RJ and USB interfaces
• Robust metallic shells compliant with MIL‑DTL‑38999 Series III or MIL‑DTL‑26482
• Designed for TEMPEST, COMSEC, SDIP‑27 applications

Applications

• C6ISR battlefield communications
• Armored and tactical ground vehicles
• Naval systems and shipboard installations
• TEMPEST, COMSEC and SDIP‑27 compliant systems
• Hardware cybersecurity and secured communications

Mechanical features

• Tri‑start thread coupling mechanism (MIL‑DTL‑38999 Series III type) with anti‑decoupling device
  - RJFTV shell size 19
  - USBFTV shell size 15
• Bayonet coupling mechanism (MIL‑DTL‑26482): RJF shell size 18
• Shock, vibration and traction resistant
• Mechanical coding / polarization
• Cordset retention in the plug: 100 N axial
• Mating cycles: minimum 500

Environmental protection

• Sealed against fluids and dust (IP68)
• Salt spray resistant
• Vibrations: 10–500 Hz, 10 g, 3 axes — no discontinuity > 10 ns according to MIL‑STD‑810H
• Compounded versions tested per NAS 1599 (5–3000 Hz, 20 g, 12 h)
• Shocks: IK06 > weight of 250 g drop from 40 cm onto connectors (mated pair)
• Humidity: 21 days, 43°C, 98% humidity
• Operating temperature range: -40°C to +85°C

Notes on use
Kits are supplied without cable so customers can assemble wiring to their required shielding and halogen‑free specifications. Reinforced Ethernet and USB cordsets are recommended for deployment in harsh environments and are fully compatible with the EMI‑shielding system.

Technical specifications

• Coupling types: Tri‑start thread (MIL‑DTL‑38999 III) and bayonet (MIL‑DTL‑26482)
• Shell sizes: RJFTV size 19, USBFTV size 15, RJF size 18 (bayonet)
• Cordset retention: 100 N axial
• Mating cycles: ≥ 500
• Ingress protection: IP68
• Vibration: 10–500 Hz, 10 g, 3 axes (MIL‑STD‑810H)
• Shock: IK06 (250 g drop from 40 cm, mated)
• Humidity resistance: 21 days at 43°C / 98% RH
• Temperature range: -40°C to +85°C
• Standards / compliance: Designed for TEMPEST, COMSEC, SDIP‑27
