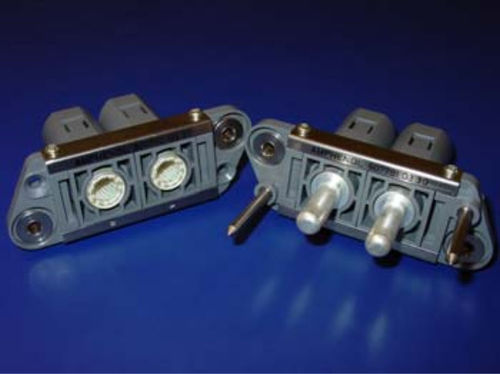

Electrical power supply connector RFM

femalecrimpmale

Product overview
Amphenol Socapex RFM Power series comprises rack & panel blind-mate power connectors with floating fixing for quick blind connections in harsh environments. Designed for power distribution, the series supports modular configurations and high-current contacts (60 A and 200 A) with RADSOK(R) socket options for improved current handling. The connectors are qualified to NF F 61-032 and meet fire safety EN 45545-2 HL3 requirements.

Key features

• Blind-mate design with floating fixing for alignment tolerance.
• Low insertion forces for rapid rack mating.
• High mating/unmating cycle life (500 cycles).
• Power contacts: male and female contacts can be mounted on either side.
• Socket contacts 200 A equipped with RADSOK(R) technology for enhanced current density.
• Modular concept: 2 modules of a single crimp contact and monolithic 6-cavity modules for removable crimp contacts.
• Designed to comply with NF F61-032 requirements (vibration, salt spray, temperature) and EN 45545-2 fire behavior.

Applications

• Railway equipment: battery and power racks for rolling stock.
• Battery racks for industrial energy storage.
• Telecom and base station power distribution racks.

Technical specifications

• Qualification: NF F 61-032
• Mating cycles: 500
• Misalignment allowance around each fixing screw: ±1.25 mm
• Contact type: Crimp contacts 60 A or 200 A
• Temperature range: -55°C to +125°C
• Fire behaviour: EN 45545-2 HL3 (R22) & I3-F1 NF F16-102
• Salt spray: 96 hours (following NFC 20711)
• Chemical resistance: HCl 1N 5 min; NaOH 1N 5 min
