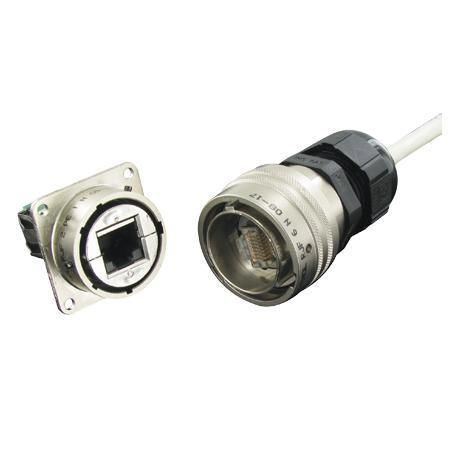

Data connector RJF

RJ45bayonetmetallic

Overview
The RJF series are ruggedized RJ45 Ethernet connectors designed for reliable Ethernet connectivity in harsh environments. Available in Cat5e, Cat6 and Cat6A variants, they feature a metallic housing, integrated sealing and a bayonet coupling with audible and visual mating signal. Compatible with standard RJ45 cordsets and supporting Power over Ethernet (PoE).

Key features

• Compliant with IEC 60603-7 variant 11
• Bayonet coupling (audible & visual mating signal)
• Robust metallic shells based on MIL-DTL-26482 H — shell size 18
• RJ45 cordset axial retention: 100 N

Applications

• Oil & Gas
• Special machines
• Industrial process control
• Outdoor data networks
• VoIP, IPTV
• Robotics

Data transmission

• Cat.5e: Ethernet Class D per ISO/IEC 11801 — supports 10Base-T, 100Base-TX, 1000Base-T up to 100 MHz (TIA/EIA-568-B)
• Cat.6: Ethernet Class E per ISO/IEC 11801 — supports 10Base-T, 100Base-TX, 1000Base-T up to 250 MHz (TIA/EIA-568-B)
• Cat.6A: Ethernet Class Ea per ISO/IEC 11801 — supports 10Base-T, 100Base-TX, 1000Base-T and 10GBase-T up to 500 MHz (TIA/EIA-568-B)

Performance

• Mating cycles: minimum 500 cycles
• Sealed against fluids and dust: IP68 (when mated)
• Shock, vibration and traction resistant
• No field cabling operations or tools required for assembly
• Mechanical coding / polarization: 4 positions
• Compatible with cable diameters from 6 mm to 13 mm

Environmental protection & qualifications

• Ingress protection: IP68
• Salt spray resistance: 48 h (nickel plating); >96 h (black coating); <500 h (olive drab cadmium)
• Fire retardant / Low smoke: UL94 V0 and NF F 16-101 & 16-102
• Vibration: 10–500 Hz, 10 g, 3 axes — no discontinuity > 10 ns
• Shock: IK06 — withstands 250 g drop from 40 cm on mated connectors
• Humidity: 21 days at 43 °C, 98% RH
• Operating temperature: -40 °C to +85 °C

Compatibility & electrical
The RJF series is fully compatible with standard RJ45 connectors and cordsets and is designed to maintain shielding continuity for EMI protection. It supports PoE transmission and offers multiple back-termination options for system integration.

Technical specifications

• Series / Model: RJF
• Ethernet categories supported: Cat5e, Cat6, Cat6A
• Standards: ISO/IEC 11801 classes D / E / Ea; IEC 60603-7 variant 11; TIA/EIA-568-B references
• Coupling: Bayonet coupling with audible & visual signal
• Shell: Metallic (MIL-DTL-26482 H, shell size 18)
• Retention force: 100 N (axial)
• Mating cycles: ≥ 500
• Ingress protection: IP68 (mated)
• Cable diameter compatibility: 6 mm to 13 mm
• Salt spray resistance: 48 h (nickel) / >96 h (black coating) / <500 h (olive drab cadmium)
• Fire rating: UL94 V0; NF F 16-101 & 16-102
• Vibration: 10–500 Hz, 10 g, 3 axes; no discontinuity > 10 ns
• Shock: IK06
• Humidity: 21 days at 43 °C, 98% RH
• Operating temperature: -40 °C to +85 °C
• Mechanical coding: 4 positions
• Supports PoE and EMI shielding continuity (metallized insert concept)
