RF connector SC39
dataelectrical power supplyoptical

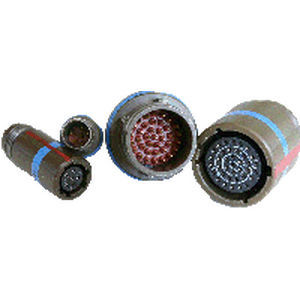

RF connector - SC39 - AMPHENOL SOCAPEX - data / electrical power supply / optical
RF connector - SC39 - AMPHENOL SOCAPEX - data / electrical power supply / optical
RF connector - SC39 - AMPHENOL SOCAPEX - data / electrical power supply / optical - image - 2
RF connector - SC39 - AMPHENOL SOCAPEX - data / electrical power supply / optical - image - 3
RF connector - SC39 - AMPHENOL SOCAPEX - data / electrical power supply / optical - image - 4
Add to favorites
Compare this product

Characteristics

Type
data, electrical power supply, RF, optical
Shape
circular
Connection type
plug-in, flange, jam nut receptacle
Electrical characteristics
current, high-current
Material
stainless steel, aluminum, nickel
Protection class
IP67
Other characteristics
in-line, MiL
Impedance

Max.: 0 Ohm

Min.: 0 Ohm

Primary current

Max.: 100 A

Min.: 3 A

Operating temperature

Max.: 200 °C
(392 °F)

Min.: -65 °C
(-85 °F)

Description

Overview
  • The SC39 is a quick-release circular connector derived from MIL-DTL-38999 Series III design, engineered for aerospace and defense applications requiring fast disconnect under operational stress.


Key features
  • Quick disconnect spring-release mechanism with 100% scoop-proof contact protection
  • Standard shell sizes from 9 to 17 (larger sizes available on request)
  • Variants with standard and low separation forces
  • Ruggedized for high resistance to shock and vibration
  • Multiple materials and platings; RoHS & REACH compliant options


Applications
  • Military and avionics harnesses
  • C5ISR and battlefield communications
  • Missile and weapon systems
  • Ground vehicles and naval systems
  • Space and satellite interfaces


Design & product benefits
  • Available receptacle and plug styles: lanyard, square flange, jam nut, in-line
  • Separation forces: standard 50–100 N; low-force <50 N
  • Typical insertion/extraction force: standard 5–10 kg; low-force <5 kg
  • Compatible with MIL-DTL-38999 Series III contacts and inserts
  • Versions with integrated backshells or stand-offs (double flange) available


Materials & Platings
  • Aluminum: olive drab cadmium or nickel plated
  • Stainless steel: passivated


Contacts types & terminations
  • Over 80 contact arrangements available
  • Contact sizes from 23 HD to 4
  • Signal, power and high-speed options (Coax, Twinax, Quadrax, Octomax) and fiber optic termini
  • Termination options: crimp and PC-tails (gold and tinned plating available)


Environmental characteristics
  • Mating durability: 500 mating cycles
  • Operating temperature: -65°C to +175°C (up to +200°C depending on material/plating)
  • Corrosion resistance: 48 to 500 hours (dependent on material/plating)
  • Ingress protection: IPX7 when mated and fully cabled


Electrical characteristics
  • Shell-to-shell conductivity: 1 to 10 mΩ depending on materials and platings
  • Receptacle spring ensures EMI protection and shell continuity
  • Contact current ratings: 3 A to 100 A depending on contact type


Technical specifications
  • Model: SC39
  • Derived standard: MIL-DTL-38999 Series III compatible contacts and inserts
  • Shell sizes: 9 to 17 (larger on request)
  • Separation forces: standard 50–100 N; low-force <50 N
  • Insertion/extraction force: standard 5–10 kg; low-force <5 kg
  • Contact arrangements: >80 possible
  • Contact sizes: 23 HD to 4
  • Contact ratings: 3 A to 100 A
  • Mating cycles: 500
  • Temperature range: -65°C to +175°C (up to +200°C depending on finish)
  • Ingress protection: IPX7 when mated and fully cabled
  • Shell-to-shell conductivity: 1–10 mΩ
  • Materials/platings: Aluminum (olive drab cadmium, nickel plated), Stainless steel (passivated)
  • Terminations: crimp and PC-tails (gold & tinned)
