Optical connector RNJ - HE308

dataelectrical power supplytwinaxial

Overview

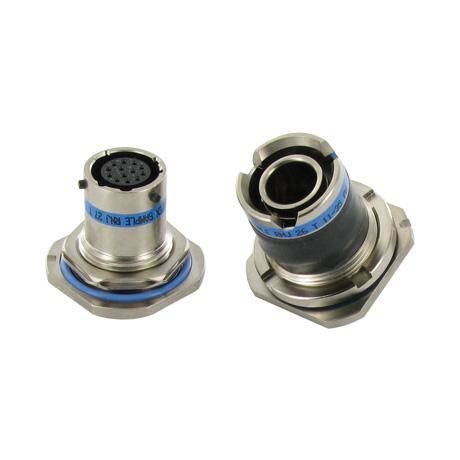

The RNJ HE308 rack & panel blind-mate connector is derived from the HE308 / D38999 Series I family and is designed for harsh-environment applications requiring repeatable blind mating between a rack and a panel. It provides scoop-proof mating, EMI shielding with grounding of shells before contact engagement, and multiple sealing elements for high resistance to moisture.

Key features

• Derived from HE308 / D38999 Series I
• Eight shell sizes (11 to 25)
• Realignment capability and floatability on three axes for blind-mate operations
• 100% scoop-proof design for protected pin engagement
• Multiple material and plating options; RoHS & REACH compliant variants available

Applications

• Battlefield communications and C5ISR systems
• Armoured and tactical ground vehicles
• Military and commercial avionics
• Missile and space equipment
• Ruggedized industrial racks and cabinets

Product benefits

• Various receptacle and plug styles (square flange, jam nut, stand-off/double flange, reduced flange, integrated backshells)
• Enables connection between a rack and a panel without manual coupling/uncoupling of connectors
• Uses the same contacts and inserts as D38999 Series I & III for logistics commonality
• Compatibility with many M85049 backshells designed for D38999 connectors

Materials & platings

• Aluminum shells: Olive Drab Cadmium, Black Zinc Nickel, Nickel plating and other finishes
• Stainless steel options: passivated (303 or 316L where specified)
• RoHS / REACH compliant configurations available

Contacts types & terminations

• More than 80 contact arrangements available
• Contact sizes from size 23 HD up to 4/0
• Supports signal, power, high-speed (coax, twinax, quadrax, Octomax) and optical termini
• Terminations: crimp and PC-tail (gold and tinned versions)

Environmental characteristics

• 500 mating cycles
• Temperature range: -65°C to +175°C (as stated)
• Salt spray resistance: 48 to 500 hours depending on material and plating
• Ingress protection: IPX7 when mated and fully cabled

Electrical characteristics

• Insulation resistance (ambient): 105 MΩ
• Contact current rating: from 3 A to 500 A depending on contact size/type

Standards & compatibility
The RNJ HE308 connector is HE308 qualified and derived from D38999 Series I. It accepts D38999 Series I and III inserts and is compatible with contacts and inserts used across the D38999 family. Optical termini support follows applicable optical interface standards used in similar connector families.

Additional description
The RNJ family provides guided blind-mate capability with realignment tolerances on three axes to accommodate axial, angular and longitudinal misalignment during blind mating. A wide range of shell styles and finishes enables adaptation to many mechanical and environmental installation constraints.

Technical specifications

• Series / Family: RNJ (HE308 Rack & Panel Blind Mate)
• Shell sizes: 11 to 25 (8 sizes)
• Contact arrangements: up to 128 contacts (per D38999 compatibility)
• Contact types: signal, power, high-speed, optical termini
• Terminations: crimp, PC-tail (gold & tinned)
• Mating cycles: 500
• Temperature range: -65°C to +175°C
• Ingress protection: IPX7 when mated and fully cabled
• Insulation resistance: 105 MΩ (ambient)
• Contact current rating: 3 A to 500 A (depending on contact size/type)
• Materials & platings: aluminum (various platings incl. Olive Drab Cadmium, Black Zinc Nickel, Nickel), stainless steel (passivated)
• Standards: derived from D38999 Series I, HE308 qualified; accepts D38999 Series I & III inserts
