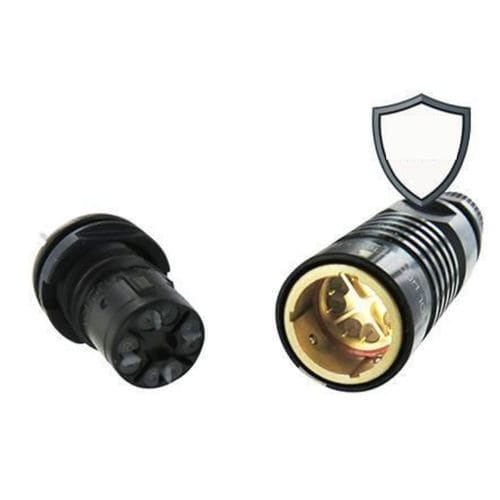

Data connector µCom 10 Gb+

push-pullsolderscrew

Overview
The µCom 10 Gb+ is a miniature Cat6A/Cat7 Ethernet connector engineered for harsh and military environments. It supports >10Gb/s Ethernet (IEEE 802.3an-2006: 10GBase-T) in a compact 15 mm maximum external diameter, with both thread and push-pull coupling options for varied installation needs.

Key features

• Exceeds 10Gb/s Ethernet (10GBase-T, IEEE 802.3an-2006)
• Cat.6A compliance per TIA-568-C.2 and ISO/IEC 11801
• Miniature form factor: 15 mm maximum external diameter
• Environmental qualification: based on MIL-DTL-38999 Series III for threaded version
• Push-pull version tested to MIL-DTL-26482 military specifications
• Also available in MIL-DTL-38999 Series III shell size 11 (TV mCom 10 Gb+)

Applications

• Battlefield communications and C4ISR systems
• Ground vehicle networks
• Commercial and military aerospace installations
• Military avionics
• Rail mass transit and other rugged transportation systems

Technical information — More features

• 500 h salt spray with RoHS-compliant plating
• Available contact terminations: solder, crimp and PCB styles
• IP68 sealing for mated and unmated receptacles
• Operating temperature range: -55°C to +125°C
• Four fully insulated pairs to minimize pair-to-pair crosstalk
• Patented interfacial shapes to reduce perturbation at pair interfaces
• Thread and push-pull coupling mechanisms; >2000 mating cycles and high vibration resistance
• Machined brass shells
• Machined, gold-plated solder and crimp contacts
• Engineered for TEMPEST-compliant systems

Product description
The µCom 10 Gb+ addresses the need for miniaturization and high-speed transmission in demanding environments. Its compact Cat6A design enables 10Gb/s Ethernet performance while preserving signal integrity through insulated pair architecture and specialized interfacial geometry. Robust environmental sealing, broad temperature tolerance, and high mechanical endurance make it suitable for repeated mating cycles in military and industrial applications. Multiple termination options (solder, crimp, PCB) provide flexibility for integration into cable assemblies and equipment.

Technical specifications

• Model: µCom 10 Gb+
• Example part number / configured: UCOM-10G+
• Ethernet capability: ≥10Gb/s (10GBase-T, IEEE 802.3an-2006)
• Standards: Cat.6A per TIA-568-C.2 and ISO/IEC 11801
• Maximum external diameter: 15 mm
• Environmental / military tests: based on MIL-DTL-38999 Series III (thread) and MIL-DTL-26482 (push-pull)
• Salt spray resistance: 500 h (RoHS-compliant plating)
• Sealing: IP68 (mated and unmated receptacles)
• Temperature range: -55°C to +125°C
• Contact styles: solder, crimp, PCB
• Insulation: four fully insulated pairs (minimized crosstalk)
• Coupling mechanisms: thread and push-pull (>2000 mating cycles)
• Shell material: machined brass
• Contact plating: gold-plated (solder and crimp contacts)
• Designed for TEMPEST-compliant systems
