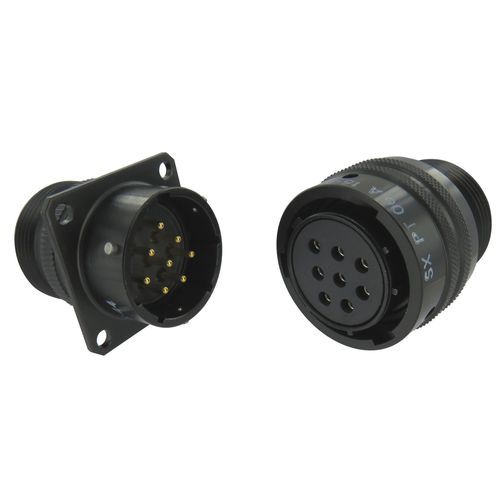

Electrical power supply connector PT/451-26482

datacrimpsolder

Product overview
The PT/451-26482 Series I are MIL-DTL-26482 Series I cylindrical I/O connectors offering a wide range of backshell and insert arrangements. They are available in solder, crimp and PCB contact versions and include thermocouple contacts as standard. Many versions are offered including watertight (IP66/67), hermetic and shielded variants. These connectors are suitable for demanding military, aeronautics and industrial environments.

Key features

• Crimp, solder & PCB contact versions
• Wide range of backshells and insert arrangements
• Optional plastic self-closing cap

Applications

• Battlefield communication
• Ground vehicles
• Military avionics
• Industrial applications

Technical information / Benefits

• Many versions available: watertight (IP66/67), hermetic, shielded, etc.
• Resistant to many fluids
• Resistant to shocks and vibrations
• Operational temperature range: -55°C to +125°C
• 9 shell sizes available
• 35 insert arrangements and up to 61 contacts
• Contact types: solder, crimp or PCB contact
• Shell finishes: electroless nickel, bright or olive drab cadmium plating, black anodised
• Thermocouple contacts as standard

Long description
The PT/451 Series connectors are a type of cylindrical MIL-DTL-26482 Series I connector designed to provide reliable electrical power and signal interconnect in harsh environments. They provide durability, versatility and multiple configuration options for demanding use cases. Compliances and references include HE301, VG95328 and MIL-DTL-26482 Series I.

Caractéristiques / Spécifications techniques

• Series / designation: PT/451 - MIL-DTL-26482 Series I
• Contact terminations available: solder, crimp, PCB
• Number of shell sizes: 9
• Insert arrangements: up to 35 arrangements
• Maximum contacts: up to 61 contacts
• Temperature range: -55°C to +125°C
• Protection versions: IP66 / IP67 (watertight), hermetic and shielded options
• Shell finish options: electroless nickel, bright cadmium, olive drab cadmium, black anodised
• Standard inclusion: thermocouple contacts
• Standards / compliance: MIL-DTL-26482 Series I, HE301, VG95328
