Data connector 2M Warrior Grip

electrical power supplycrimpthrough-hole

Description

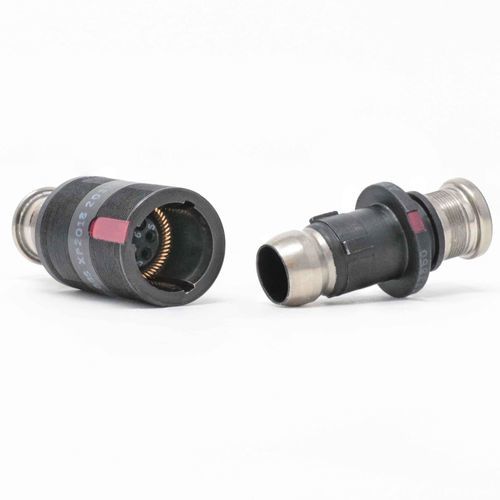

Amphenol’s Warrior Grip series is a Nett Warrior–style micro-miniature circular connector engineered to deliver fast charging (10 A) directly to the warfighter while remaining lightweight and rugged. It is a derivative of the 2M804 push-pull family and features improved mate/unmate force, selectively plated aluminium shells for enhanced conductivity, and backward compatibility with size #23 pin contacts. The socket contact system reduces heat rise by approximately 26% versus competing solutions and meets MIL-STD-1472 temperature exposure limits.

Key features

• Micro-miniature circular connector, push-pull coupling
• Intermateable with existing Nett Warrior push-pull connectors
• Derived from 2M804 with 10 A fast-charging capability
• Unique unmating force rating: 13 ± 3 lbs
• Selectively plated aluminium shells (nickel and black zinc-nickel)
• Excellent built-in EMI shielding
• Available in 2 contact arrangements
• Contact terminations: crimp, solder cup or PC tail (size 23)
• Sealing: IPX7 when mated and fully cabled

Applications

• Battlefield communications and C6ISR systems
• Ground vehicles and vehicular electronics
• Soldier-worn power and communications equipment

Technical information
Product benefits

• Delivers fast 10 A charging directly to the user
• Lower thermal rise (~26% improvement) for higher reliability under load
• Selective shell plating enhances conductivity and corrosion resistance
• Faster, easier disconnection compared with legacy 2M804
• Multiple mounting and termination options for design flexibility

Materials & Platings

• Aluminium shells with selective nickel and black zinc-nickel plating

Contacts types & terminations

• 2 contact arrangements available
• Contact size: #23
• Terminations: crimp, solder cup, PC tail

Environmental characteristics

• Durability: up to 1,000 mating cycles
• Operating temperature: -65°C to 175°C (meets MIL-STD-1472 limits)
• Sealing: IPX7 when mated and fully cabled

Electrical characteristics

• Contact rating: up to 10 A (fast-charging capability)

Technical specifications

• Series / Name: 2M Warrior Grip
• Connector type: Micro-miniature circular, push-pull coupling
• Contact arrangements: 2 available
• Contact size: #23
• Contact rating: up to 10 A
• Termination options: crimp, solder cup, PC tail
• Unmating force: 13 ± 3 lbs
• EMI shielding: Excellent (integrated)
• Durability: up to 1,000 mating cycles
• Temperature range: -65°C to 175°C (meets MIL-STD-1472)
• Ingress protection: IPX7 when mated and fully cabled
• Materials: Aluminium shells with selective nickel and black zinc-nickel plating
• Thermal performance: ~26% improvement in heat rise vs competitors
