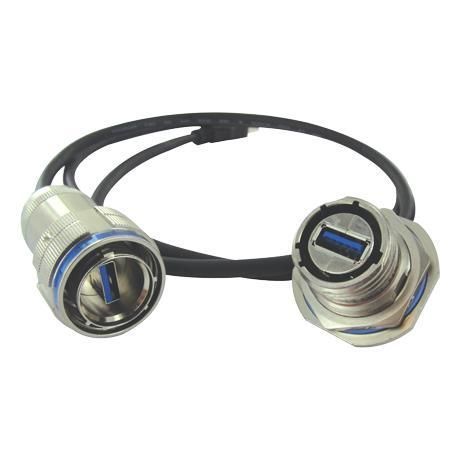

Data connector USBF TV

USBcircularscrew coupling

Overview
The Amphenol Socapex USBF TV is a range of reinforced USB 2.0 connectors designed for harsh environments. Based on the MIL-DTL-38999 Series III platform, USBF TV connectors provide a rugged, threaded-coupling USB interface offering enhanced EMI protection, mechanical reliability and environmental sealing for military and industrial applications.

Key features

• Based on MIL-DTL-38999 Series III
• Threaded locking mechanism (tri-start thread coupling)
• Sealed against fluids and dusts (IP68)
• Available in USB 3.0 (product family variant)

Applications

• Battlefield communication
• Ground vehicles
• Military avionics
• Industrial environments

Product details
The USBF TV family delivers improved EMI protection through a metallized insert and full shielding continuity from cable to receptacle and panel. The tri-start thread coupling includes an anti-decoupling device to avoid accidental disconnection. Shell size offered (example in range): size 15. Typical USBF TV implementations transmit USB 2.0 data rates (up to 480 Mb/s) while mechanical and environmental qualifications cover resistance to shock, vibration and humidity. Operational temperature range: -40°C to +85°C. USB Field option enables insertion of a standard USB 2.0 cordset into a metallic plug for reinforced protection against shocks, dust and fluids.

Configurations / Options

• Two mechanical coding / polarization options (receptacle insert rotation)
• Back termination options depend on selected connector variant (PC tails, right-angle exits, cordset variants, open-ended cordsets, stand-offs)
• Protective accessories available: protective caps, panel gaskets, specific tools and backshells to increase sealing and mechanical protection

Technical specifications

• Denomination: USBF TV
• Based on standard: MIL-DTL-38999 Series III
• Coupling: Tri-start threaded locking with anti-decoupling
• Ingress protection: IP68 (mated plug/receptacle or cap/receptacle)
• Data rate: USB 2.0 up to 480 Mb/s (family variants include USB 3.0 options)
• EMI shielding: Full shielding continuity via metallized insert; reinforced 360° shielding options
• Shell size: example shell size 15 (product family)
• Mechanical coding: two coding/polarization options
• Environmental: qualified for shock, vibration, humidity
• Operating temperature range: -40°C to +85°C
• Part number (example/configured): USBFTV
• USB Field option: allows conversion of a standard USB cordset into a ruggedized metallic-plug cordset
