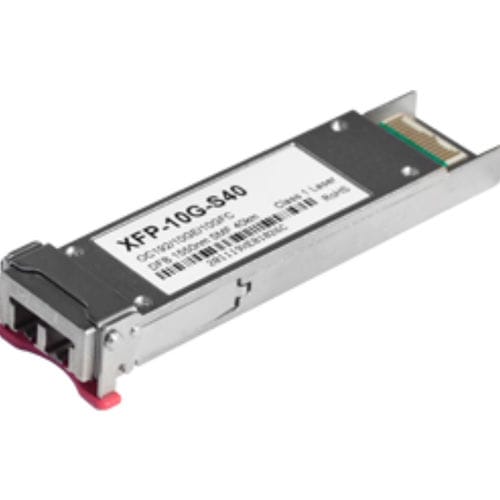

Fiber optic transceiver XFP-10G-S40

Ethernetreferencesingle-mode

Product Overview The XFP-10G-S40 is a very compact 10Gb/s optical transceiver module for serial optical communication applications at 10Gb/s. The XFP-10G-S40 converts a 10Gb/s serial electrical data stream to 10Gb/s optical output signal and a 10Gb/s optical input signal to 10Gb/s serial electrical data streams. The high speed 10Gb/s electrical interface is fully compliant with XFI specification and allows FR4 host PCB trace up to 200mm. Features - 10Gb/s serial optical interface compliant to 802.3ae, 10GBASE ER/EW - Uncooled 1550nm EML transmitter with TEC, Pin photo-detector - XFP Mechanical interface with bail latch and hot pluggable - XFI High Speed Electrical Interface - 2-wire interface for management and digital diagnostic monitor - Operating case temperature: 0 to 70 °C - All-metal housing for superior EMI performance - Advanced firmware allow customer system encryption information to be stored in transceiver - RoHS Compliant - No reference clock needed Package Content - XFP-10G-S40 Optional Accessories - CBF-SC01SC-SD: SC To SC 1 Meter Single-Mode Duplex Cable Certifications - Certification 1 - Certification 2 - Certification 3 - Certification 4 Technical Specifications - Product type: 10G XFP Transceiver - Mode: Single-Mode - Transmission distance: 40km - Connector: LC - Wavelength: 1550nm - Operating temperature: 0º~70ºC
