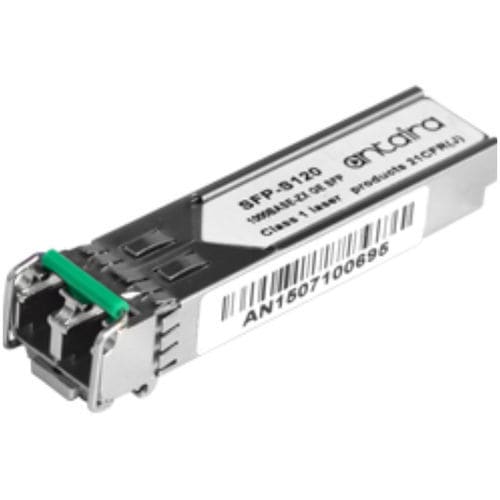

Fiber optic transceiver SFP-S120

gigabit Ethernetfor telecom networksdata transmission

Product Overview The SFP-S120 is a high performance and cost-effective module for serial optical data communication applications specified for single mode of 1.25 Gb/s. It operates on +3.3V power. The module is intended for single mode fiber, operates at a nominal wavelength of 1550nm, and complies with the Multi-Source Agreement (MSA) Small Form Factor Pluggable (SFP). Features - 1550nm DFB LD - APD Receiver - Data Rate: 1.25Gbps, NRZ - Single +3.3V Power Supply - RoHS Compliant and Lead-free - AC/AC Differential Electrical Interface - Compliant with Multi-Source Agreement (MSA) Small Form Factor Pluggable (SFP) - Duplex LC Connector - Compliance with specifications for IEEE-802.3z Gigabit Ethernet at 1.25 Gbps - Compliance with ANSI specifications for Fiber Channel applications at 1.06 Gbps - Eye Safety (Designed to meet Laser Class 1, complies with EN60825-1) Package Content - SFP-S120 Optional Accessories - CBF-LC01LC-SD: LC To LC 1 Meter Single-Mode Duplex Certifications - Multiple certifications (see product page for icons) Technical Specifications - Product Name: SFP-S120 - Type: 1 Gigabit Fiber SFP Transceiver - Mode: Single-Mode - Transmission Distance: 120km - Connector: LC - Wavelength: 1550nm - Operating Temperature: 0º~70ºC - Data Rate: 1.25Gbps - Power Supply: +3.3V - Compliance: RoHS, IEEE-802.3z, ANSI Fiber Channel, MSA SFP
