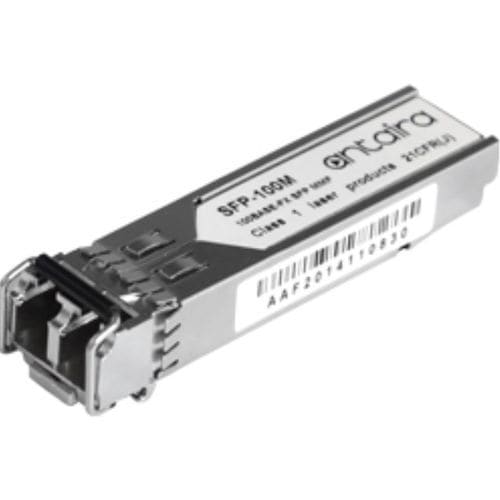

Fiber optic transceiver SFP-100M-J

multimodedataSFP

Product Overview The SFP-100M-J is a high performance and cost-effective module for serial optical data communication applications specified for multimode of 155 Mb/s. It operates on +3.3V power. The module is intended for multimode fiber, operates at a nominal wavelength of 1310nm, and complies with the Multi-Source Agreement (MSA) Small Form Factor Pluggable (SFP). Each module consists of a transmitter optical subassembly, a receiver optical subassembly, and an electrical subassembly. All are housed in a metal package and the combination produces a reliable component. Features - 1310nm LED/FP - Data Rate: 155Mbps, NRZ - Single +3.3V Power Supply - RoHS Compliant and Lead-free - AC/AC Differential Electrical Interface - Compliant with Multi-Source Agreement (MSA) Small Form Factor Pluggable (SFP) - Duplex LC Connector - Compliance with 100Base-FX of IEEE802.3u Standard - Compliance with FDDI PMD Standard - Compliance with ATM Standard Package Content - SFP-100M-J Optional Accessories - CBF-LC02LC-MD: LC To LC 2 Meter Multi-Mode Duplex Certifications - Multiple certifications (see product page for icons) Technical Specifications / Characteristics - Product Name: SFP-100M-J - Type: Fiber SFP Transceiver - Data Rate: 155 Mbps - Fiber Type: Multi-Mode - Transmission Distance: 2 km - Connector: LC - Wavelength: 1310nm - Operating Temperature: 0º~70ºC - Compatibility: Juniper Compatible - Power Supply: +3.3V - Compliance: RoHS, IEEE802.3u, FDDI PMD, ATM, MSA SFP
