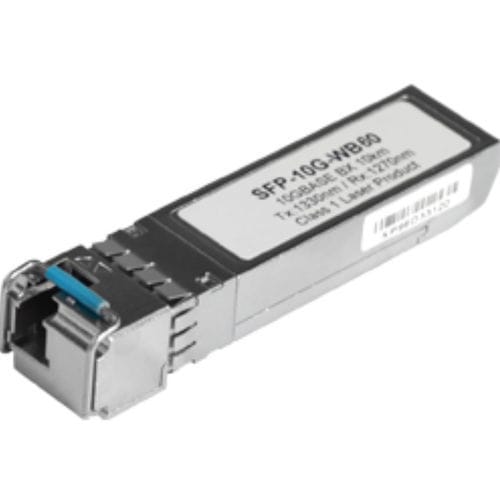

Ethernet transceiver SFP-10G-WB60-H

for telecom networksfor fiber opticsdata transmission

Product Overview Antaira SFP-10G-WB60-H (HP Procurve Compatible) is a Hot Pluggable 3.3V Small-Form-Factor transceiver module. It is designed expressly for high-speed communication applications that require data transmission rates up to 11.1Gbps. It is compliant with SFF-8472 and SFP+ MSA, and the module data link is up to 60Km in 9/125um single mode fiber. Features - 11.1Gbps Data Links - Up to 60km Transmission on SMF - Single Mode Fiber Tx:1330 Rx:1270 - 2-Wire Interface with Integrated Digital Diagnostic Monitoring - EEPROM with Serial ID Functionality - Hot-Swappable SFP+ Design - Compliant with SFP+ Multi-Source Agreement - Single LC Connector - Single +3.3V Supplied Power - SFP-8472 Compliant - SFP-8431 Compliant - RoHS Compliant - Operating Temperature Range: -0° to 70° C - 5-Year Warranty Package Content - SFP-10G-WB60-H Optional Accessories - CBF-LC01LC-SD: LC To LC 1 Meter Single-Mode Duplex Certifications - Multiple certifications (see product page for icons) Download - Datasheet Technical Specifications - Product Name: SFP-10G-WB60-H - Type: 10G SFP+ BX LC SMF 60km Module - Transmission: Tx:1330nm / Rx:1270nm - Compatibility: HP Procurve Compatible - Data Rate: Up to 11.1Gbps - Distance: Up to 60km (9/125um single mode fiber) - Connector: LC - Power Supply: +3.3V - Operating Temperature: -0° to 70° C - Compliance: SFF-8472, SFP+ MSA, SFP-8472, SFP-8431, RoHS - Warranty: 5 Years
