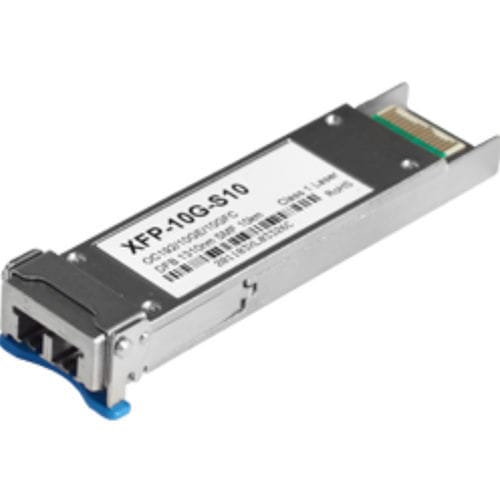

Fiber optic transceiver XFP-10G-S10

data transmissionfor fiber opticslow-power

Product Overview The XFP-10G-S10 is a very compact 10Gb/s optical transceiver module for serial optical communication applications at 10Gb/s. The XFP-10G-S10 converts a 10Gb/s serial electrical data stream to 10Gb/s optical output signal and a 10Gb/s optical input signal to 10Gb/s serial electrical data streams. The high speed 10Gb/s electrical interface is fully compliant with XFI specification and allows FR4 host PCB trace up to 200mm. Features - 10Gb/s serial optical interface compliant to 802.3ae - Uncooled 1310nm DFB transmitter and Pin photodiode receiver - XFP Mechanical interface with bail latch and hot pluggable - XFI High Speed Electrical Interface - 2-wire interface for management and digital diagnostic monitor - Low Power Consumption, Single +3.3V Power supply - Operating case temperature: 0 to 70 °C - All-metal housing for superior EMI performance - Advanced firmware allows customer system encryption information to be stored in transceiver Package Content - XFP-10G-S10 Optional Accessories - CBF-SC01SC-SD: SC To SC 1 Meter Single-Mode Duplex Cable Certifications - Multiple certifications (see product page for icons) Technical Specifications / Characteristics - Product type: 10G XFP Transceiver - Mode: Single-Mode - Transmission distance: 10km - Connector: LC - Wavelength: 1310nm - Operating temperature: 0º~70ºC - Electrical interface: XFI, compliant with XFI specification - Power supply: Single +3.3V - Hot pluggable: Yes - Management: 2-wire interface for management and digital diagnostic monitor - Housing: All-metal for EMI performance
