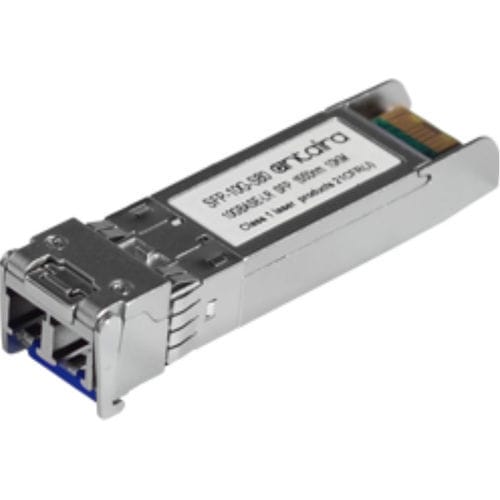

Fiber optic transceiver SFP-10G-S80

for telecom networksdata transmissionfor fiber optics

Product Overview The SFP-10G-S80 is designed to transmit and receive optical data over single mode optical fiber for link length up to 10km. The transmitter converts 10Gbit/s serial PECL or CML electrical data into serial optical data compliant with the 10GBASE-LR standard. Features - 10Gb/s serial optical interface compliant to 802.3ae 10GBASE-LR - Electrical interface compliant to SFF-8431 specifications for enhanced 8.5 and 10 Gigabit small form factor pluggable module SFP+ - 1310nm DFB transmitter, PIN photo-detector - 2-wire interface for management specifications compliant with SFF 8472 digital diagnostic monitoring interface for optical transceivers - Operating case temperature: 0 to 70°C - All-metal housing for superior EMI performance - Low power consumption - Advanced firmware allows customer system encryption information to be stored in transceiver - Cost effective SFP+ solution, enables higher port densities and greater bandwidth Package Content - SFP-10G-S80 Optional Accessories - CBF-LC01LC-SD: LC To LC 1 Meter Single-Mode Duplex Certifications - Multiple certifications (see product page for icons) Technical Specifications - Product Name: SFP-10G-S80 - Type: 10G SFP+ Transceiver - Transmission: Single-Mode, 80km - Connector: LC - Wavelength: 1550nm - Operating Temperature: 0º~70ºC
