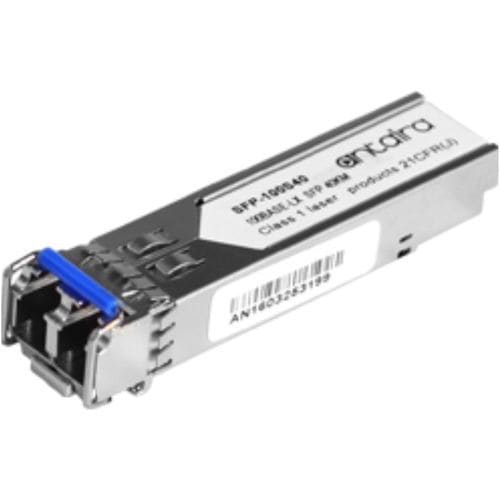

Ethernet transceiver SFP-100S40-T-H

monitoringdatasingle-mode

Product Overview: The SFP-100S40-T-H is a high performance and cost-effective module for serial optical data communication applications specified for single mode of 155 Mb/s. It operates on +3.3V power supply. The module is intended for Single-mode fiber, operates at a nominal wavelength of 1310nm and complies with the Multi-Source Agreement (MSA) Small Form Factor Pluggable (SFP). Features: - Extended Operating Temperature - 1310nm FP LD - Data Rate: 155Mbps, NRZ - Single +3.3V Power Supply - RoHS Compliant and Lead-free - AC/AC Differential Electrical Interface - Compliant with Multi-Source Agreement (MSA) Small Form Factor Pluggable (SFP) - Compliant with SFF-8472 Digital Diagnostic Monitoring Interface (optional) - Duplex LC Connector - Compliance with 100Base-FX of IEEE802.3u Standard - Compliance with FDDI PMD Standard - Compliance with ATM Standard Package Content: - SFP-100S40-T-H Optional Accessories: - CBF-LC01LC-SD: LC To LC 1 Meter Single-Mode Duplex Certifications: Technical Specifications / Characteristics: - Product Name: SFP-100S40-T-H - Type: Fast Ethernet SFP Transceiver - Data Rate: 155Mbps - Fiber Type: Single-Mode - Transmission Distance: 40km - Connector: LC - Wavelength: 1310nm - Operating Temperature: -40º~85ºC - HP Procurve Compatible - Power Supply: +3.3V - Compliance: RoHS, IEEE802.3u, FDDI PMD, ATM, MSA SFP, SFF-8472 (optional)
