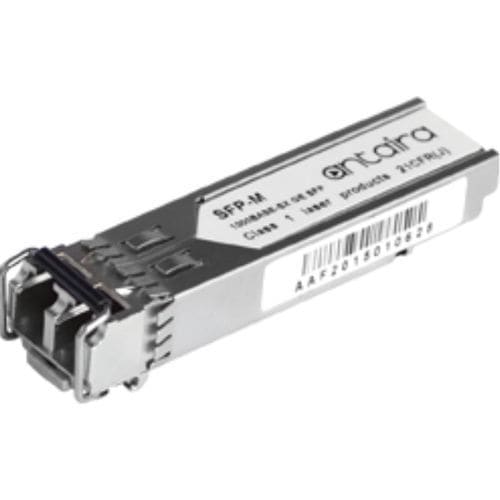

Fiber optic transceiver SFP-M

gigabit Ethernetbackplanemultimode

Product Overview The SFP-M is a high performance and cost-effective module for serial optical data communication applications specified for multimode of 1.25 Gb/s. It operates on +3.3V power. The module is intended for multimode fiber, operates at a nominal wavelength of 850nm, and complies with the Multi-Source Agreement (MSA) Small Form Factor Pluggable (SFP). Each module consists of a transmitter optical subassembly, a receiver optical subassembly, and an electrical subassembly. All are housed in a metal package and the combination produces a reliable component. Features - 850nm VCSEL - Data Rate: 1.25Gbps, NRZ - Single +3.3V Power Supply - RoHS Compliant and Lead-free - AC/AC Differential Electrical Interface - Compliant with Multi-Source Agreement (MSA) Small Form Factor Pluggable (SFP) - Duplex LC Connector - Compliance with specifications for IEEE-802.3z Gigabit Ethernet at 1.25 Gbps - Compliance with ANSI specifications for Fiber Channel applications at 1.06 Gbps - Eye Safety (Designed to meet Laser Class 1, complies with EN60825-1) Package Content - SFP-M Certifications - Certification 1 - Certification 2 - Certification 3 - Certification 4 Technical Specifications - Product type: 1 Gigabit Fiber SFP Transceiver - Mode: Multi Mode - Transmission distance: 550M - Connector: LC - Wavelength: 850nm - Operating temperature: 0º~70ºC - Data Rate: 1.25Gbps, NRZ - Power Supply: +3.3V - Compliance: RoHS, IEEE-802.3z, ANSI Fiber Channel, EN60825-1 - Form Factor: SFP (Small Form Factor Pluggable)
