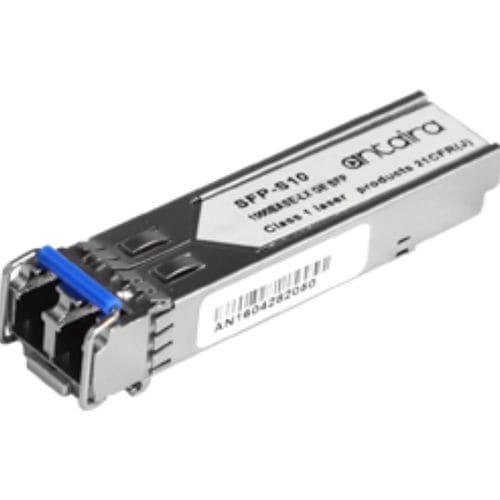

Fiber optic transceiver SFP-S10-J

gigabit Ethernetdata transmissionfor fiber optics

Product Overview The SFP-S10-J is a high performance and cost-effective module for serial optical data communication applications specified for single mode of 1.25 Gb/s. It operates on +3.3V power. The module is intended for single mode fiber, operates at a nominal wavelength of 1310nm, and complies with the Multi-Source Agreement (MSA) Small Form Factor Pluggable (SFP). Each module consists of a transmitter optical subassembly, a receiver optical subassembly, and an electrical subassembly. All are housed in a metal package and the combination produces a reliable component. Features - 1310nm FP LD - Data Rate: 1.25Gbps, NRZ - Single +3.3V Power Supply - RoHS Compliant and Lead-free - AC/AC Differential Electrical Interface - Compliant with Multi-Source Agreement (MSA) Small Form Factor Pluggable (SFP) - Duplex LC Connector - Compliance with specifications for IEEE-802.3z Gigabit Ethernet at 1.25 Gbps - Compliance with ANSI specifications for Fiber Channel applications at 1.06 Gbps - Eye Safety (Designed to meet Laser Class 1, complies with EN60825-1) Package Content - SFP-S10-J Optional Accessories - CBF-LC01LC-SD: LC To LC 1 Meter Single-Mode Duplex Certifications - RoHS - Other certifications (icons shown, details not specified) Technical Specifications / Characteristics - Product Name: SFP-S10-J - Type: 1 Gigabit Fiber SFP Transceiver - Mode: Single-Mode - Transmission Distance: 10km - Connector: LC - Wavelength: 1310nm - Operating Temperature: 0º~70ºC - Juniper Compatible - Data Rate: 1.25Gbps - Power Supply: +3.3V - Compliance: RoHS, IEEE-802.3z, ANSI Fiber Channel, MSA SFP - Eye Safety: Laser Class 1, EN60825-1
