Fiber optic transceiver SFP-10G-WA10

data transmissiondatasingle-mode

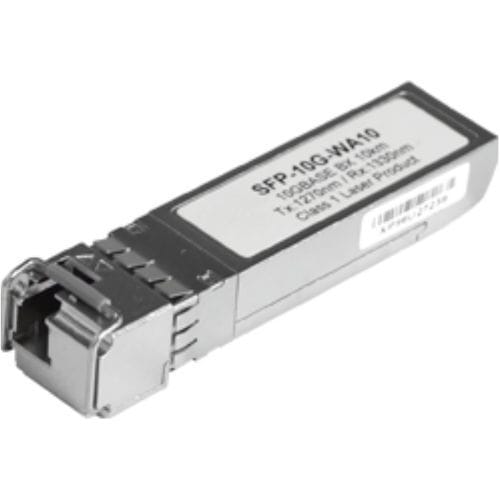

Product Overview Antaira SFP-10G-WA10 (Cisco Compatible) is a Hot Pluggable 3.3V Small-Form-Factor transceiver module. It is designed expressly for high-speed communication applications that require data transmission rates up to 11.1Gbps. It is compliant with SFF-8472 and SFP+ MSA, and the module data link is up to 10Km in 9/125um single mode fiber. Features - 11.1Gbps Data Links - Up to 10km Transmission on SMF - Single Mode Fiber Tx:1270 Rx:1330 - 2-Wire Interface with Integrated Digital Diagnostic Monitoring - EEPROM with Serial ID Functionality - Hot-Swappable SFP+ Design - Compliant with SFP+ Multi-Source Agreement - Single LC Connector - Single +3.3V Supplied Power - SFP-8472 Compliant - SFP-8431 Compliant - RoHS Compliant - Operating Temperature Range: -0° to 70° C - 5-Year Warranty Package Content - SFP-10G-WA10 Optional Accessories - CBF-LC01LC-SD: LC To LC 1 Meter Single-Mode Duplex Certifications - Certification 1 - Certification 2 - Certification 3 - Certification 4 Download - Datasheet Technical Specifications - Product Name: SFP-10G-WA10 - Type: 10G Fiber SFP+ Transceiver WDM-A - Mode: Single-Mode - Transmission Distance: 10km - Connector: LC - TX Wavelength: 1270nm - RX Wavelength: 1330nm - Operating Temperature: 0 to 70°C - Cisco Compatible
