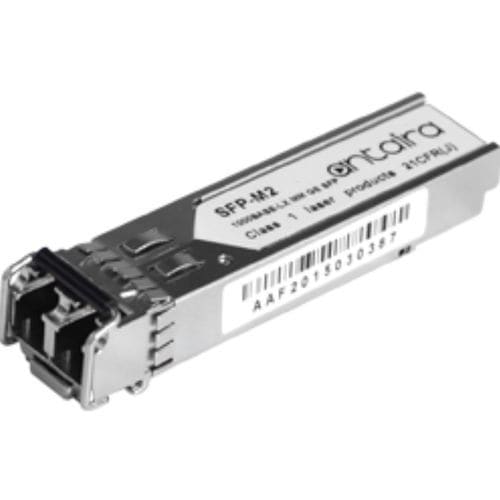

Fiber optic transceiver SFP-M2-T

gigabit Ethernetbackplanemultimode

Product Overview: The SFP-M2-T is a high performance and cost-effective module for serial optical data communication applications specified for multimode of 1.25 Gb/s. It operates on +3.3V power. The module is intended for multimode fiber, operates at a nominal wavelength of 850nm, and complies with the Multi-Source Agreement (MSA) Small Form Factor Pluggable (SFP). Features: - Extended Operating Temperature - 1310nm FP LD - Multi Data Rate: from 125M to 1.25Gbps, NRZ - Data Rate: 1.25Gbps, NRZ - Single +3.3V Power Supply - RoHS Compliant and Lead-free - AC/AC Differential Electrical Interface - Compliant with Multi-Source Agreement (MSA) Small Form Factor Pluggable (SFP) - Duplex LC Connector - Compliance with specifications for IEEE-802.3z Gigabit Ethernet at 1.25 Gbps - Compliance with ANSI specifications for Fiber Channel applications at 1.06 Gbps - Eye Safety (Designed to meet Laser Class 1, complies with EN60825-1) Package Content: - SFP-M2-T Optional Accessories: - CBF-LC02LC-MD: LC To LC 2 Meter Multi-Mode Duplex Certifications: - Multiple certifications (see product page for icons) Technical Specifications / Characteristics: - Product Type: 1 Gigabit Fiber SFP Transceiver - Mode: Multi Mode - Transmission Distance: 2km - Connector: LC - Wavelength: 1310nm - Operating Temperature: -40º~85ºC - Power Supply: +3.3V - Data Rate: 1.25Gbps (NRZ) - Compliance: RoHS, IEEE-802.3z, ANSI Fiber Channel, EN60825-1 - Form Factor: SFP (Small Form Factor Pluggable)
