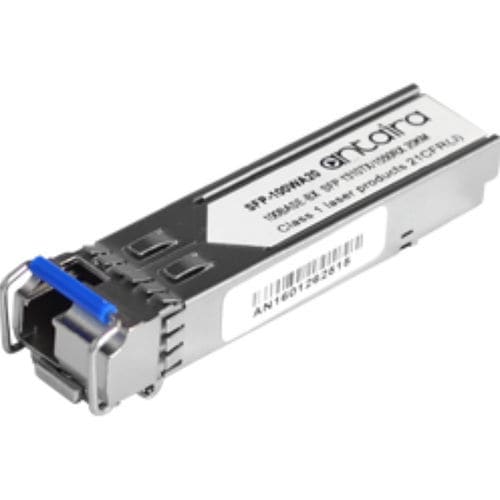

Fiber optic transceiver SFP-100WA20

data transmissionfor fiber opticsdata

Product Overview - The SFP-100WA20 is a high performance and cost-effective module for serial optical data communication applications specified for single mode of 125 Mb/s. It operates on +3.3V power. The module is intended for Single-mode fiber, operates at a nominal wavelength of Tx: 1310nm / Rx: 1550nm, and complies with the Multi-Source Agreement (MSA) Small Form Factor Pluggable (SFP). Each module consists of a bi-directional optical subassembly that combines a transmitter with a receiver and an electrical subassembly. All are housed in a metal package and the combination produces a reliable component. Features - 1310nm FP LD - Data Rate: 125~155Mbps, NRZ - Single +3.3V Power Supply - RoHS Compliant and Lead-free - AC/AC Differential Electrical Interface - Compliant with Multi-Source Agreement (MSA) Small Form Factor Pluggable (SFP) - Single LC Connector - Compliance with specifications for IEEE-802.3ah 100BASE-BX10-U - Compliance with FDDI PMD Standard - Compliance with ATM Standard Package Content - SFP-100WA20 Optional Accessories - CBF-LC01LC-SS: LC To LC 1 Meter Single-Mode Simplex Certifications - Multiple certifications (see product page for icons) Technical Specifications / Characteristics - Product Name: SFP-100WA20 - Type: 100 Mbps Fiber SFP Transceiver WDM-A - Fiber Type: Single-Mode - Transmission Distance: 20km - Connector: LC - Transmitter Wavelength (TX): 1310nm - Receiver Wavelength (RX): 1550nm - Operating Temperature: 0º~70ºC - Data Rate: 125~155Mbps, NRZ - Power Supply: +3.3V - Compliance: RoHS, IEEE-802.3ah 100BASE-BX10-U, FDDI PMD, ATM Standard, MSA SFP
