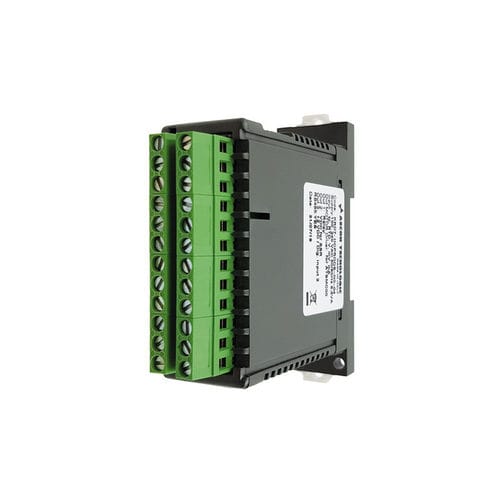

Digital temperature controller K30

PIDULprocess

Mini-programmer controller with independent timer This model is designed to be mounted inside a panel, on a DIN rail and can be connected to an external operator panel. Programming can therefore be carried out simply via the external HMI keyboard or via programming devices, or via PC. The serial communication on board, with Modbus protocol, allows integration with control, supervision and monitoring systems. FUNCTION - Programmer, Controller DIMENSIONS - DIN rail mounting POWER SUPPLY - 24 Vac/Vdc, 100… 240 Vac INPUTS - 0/1… 5 V, 0/2… 10 V, 0/4… 20 mA, Pt100, PTC-NTC, Thermocouple NUMBER OF OUTPUTS - 1, 2, 3, 4, 5 OUTPUTS - Relay and/or SSR control DIGITAL INPUTS - 1, 2 INDEPENDENT TIMER - Yes NUMBER OF PROGRAMS / SEGMENTS - 1 program with 8 segments INTERFACE - RS 485 Modbus Slave, TTL Modbus SPECIAL FUNCTIONS - Digital retransmission, Hours/Days worked, Power on delay, Soft start, Transmitter power supply, User calibration, Wattmeter CONTROL - ON/OFF and PID single or double action EXTRACTABILITY - Not extractable, With fix terminal block, With removable terminal block CERTIFICATIONS - CE, UL
