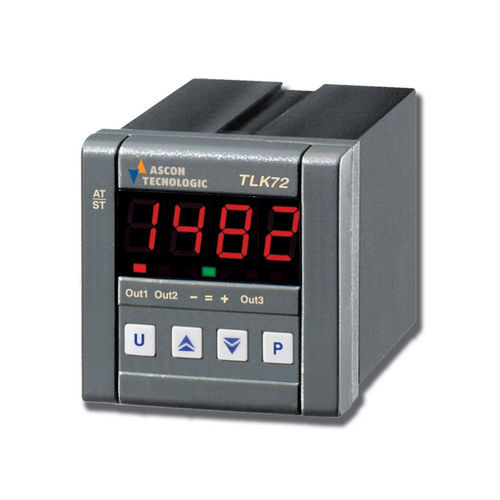

Digital controller with serial communication
This model is particularly requested in the world of bread making, both for the 72×72 format, and because it can be equipped with a Lexan keyboard, which, being made up of a single smooth surface, without interstices, is suitable in the presence of flour and powders.
It is also equipped with RS485 serial communication.
FUNCTION -
Controller
DIMENSIONS -
72 x 72 mm
DISPLAY -
1 display with 4 digit
POWER SUPPLY -
24 Vac/Vdc, 100… 240 Vac
INPUTS -
0/1… 5 V, 0/2… 10 V, 0/4… 20 mA, Pt100, PTC-NTC, Thermocouple
NUMBER OF OUTPUTS -
1, 2, 3
OUTPUTS -
Relay and/or SSR control
INTERFACE -
RS 485 Modbus Slave, TTL Modbus
SPECIAL FUNCTIONS -
Transmitter power supply
CONTROL -
ON/OFF and PID single or double action
EXTRACTABILITY -
Not extractable, With fix terminal block
CERTIFICATIONS -
CE, UL
