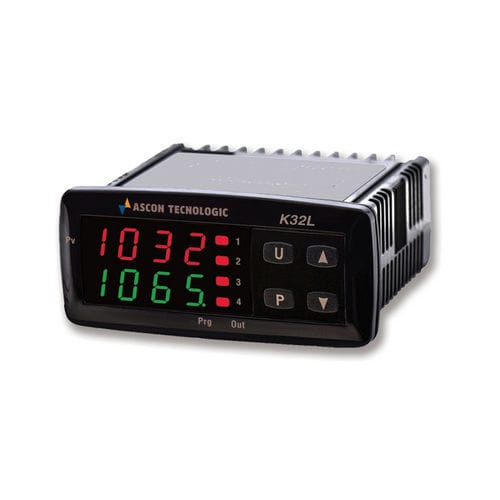

Digital temperature regulator K32L

ULRS-485

This version has been specially designed to increase the accuracy of the measurement, providing the possibility of calibrating the input up to 10 points. It can be requested with a “Sensitive Touch” keyboard: i.e. a capacitive touch keyboard which guarantees complete protection of the front of the instrument from dust and liquids and which allows easy cleaning of the front. Programming is done simply from the keyboard, via programming devices, or via PC. The on-board serial port, with Modbus protocol, allows integration with control, supervisory and monitoring systems. Technical specifications Dimensions - 78 x 35 mm Display - 2 display with 4 digit 3 dynamic colours Power supply - 12 Vac/Vdc, 24 Vac/Vdc, 100… 240 Vac Inputs - 0/1… 5 V, 0/2… 10 V, 0/4… 20 mA, Pt100, PTC-NTC, Thermocouple Number of outputs - 1, 2, 3, 4 Outputs - Relay and/or SSR control Digital inputs - 1, 2 Special functions - Digital retransmission, Hours/Days worked, Power on delay, Soft start, Transmitter power supply, Wattmeter, 10 point calibration Extractability - Not extractable, With fix terminal block, With removable terminal block Certifications - CE, UL
