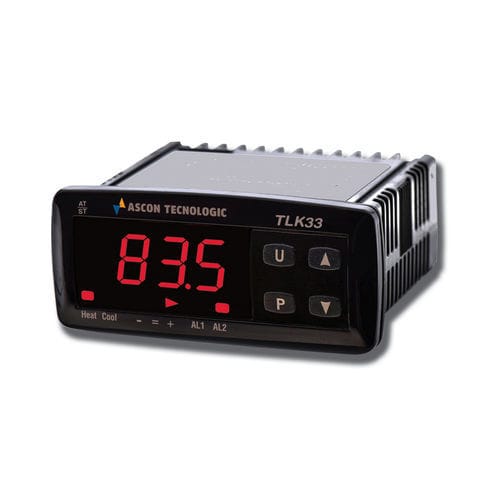

Cooling controller module TLK33

digitalmicroprocessor

There are many ways to cool or heat surfaces, including the use of Peltier cells, layers of different semiconductors that allow heat to be absorbed on one side and released on the other. The fields of application are many: from the storage and transport of biological samples, to the cooling of optical sensors, in lasers, in small portable car refrigerators, in mini cold water dispensers, in the temperature control of electrical panels and so on. The TLK33 controller is specifically designed to directly control Peltier cells with currents up to 7A. Technical specifications Dimensions - 78 x 35 mm Display - 1 display with 4 digit Power supply - 12 Vac/Vdc, 24 Vac/Vdc, 100… 240 Vac Inputs - 0/1… 5 V, 0/2… 10 V, 0/4… 20 mA, Pt100, PTC-NTC, Thermocouple Number of outputs - 1, 2, 3, 4 Outputs - Control of peltier cells, Relay and/or SSR control Digital inputs - 1, 2 Special functions - Soft start, Transmitter power supply Extractability - Not extractable, With fix terminal block Certifications - CE, UL
