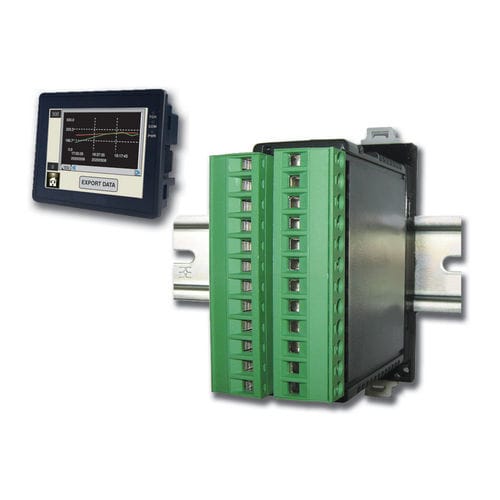

Programmer KRD50

This DIN rail mounting controller can be used both as a programmer and as an I/O module that can be combined with Touchscreen operator panels. An interesting application is that of oven control: see PRO-series solution. The KUBE series programmers are equipped with many useful functions, for example: • “Segment recovery” + “elapsed time recovery”, ie in the event of a power failure, the execution of the program can restart from the point at which it was interrupted (accuracy 1 minute) • Possibility to manage sequences up to 4 programs even with different time base (h / min – min / s) • Up to 999 repetitions Technical specifications Dimensions - 78 x 35 mm Power supply - 24 Vac/Vdc, 100… 240 Vac Inputs - 0/1… 5 V, 0/2… 10 V, 0/4… 20 mA, Pt100, Pt1000, PTC-NTC, Thermocouple, Universal Number of outputs - 1, 2, 3, 4 Outputs - 0/2… 10 V, 0/4… 20 mA, Relay and/or SSR control, Servomotor Digital inputs - 1, 2 Number of programs / segments - 1 program with 16 segments, 1 program with 8 segments, 4 programs with 16 segments, 8 programs with 12 segments Retransmission output - 0/2… 10 V, 0/4… 20 mA Special functions - Digital retransmission, ON time, Power on delay, Soft start, Transmitter power supply, User calibration Extractability - Not extractable, With fix terminal block, With removable terminal block Certifications - CE, UL
