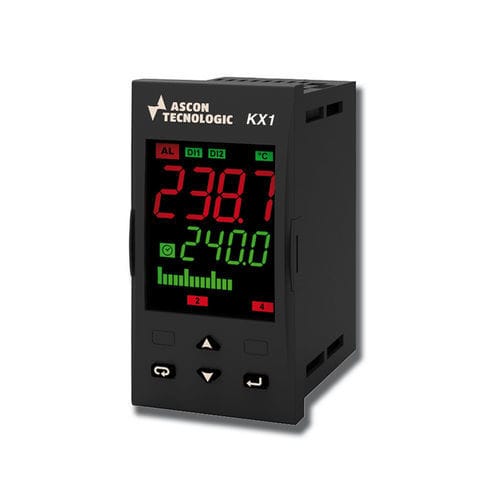

Digital temperature controller KX1

double LED displayPIDprogrammable

KUBE series: the evolution that has something more! In addition to the normal functions of temperature controller, there are several advanced functions: -evoGreen – for energy saving -evoTune – for “trouble-free” adjustment -evoTools – coded configuration for quick commissioning and programming key for instant parameterization -User calibration for sensor position compensation -Independent timer function with 5 operating modes -Hour counter/working days with 2 functions and programmable alarm -Calculation of the power and energy consumed (Wattmeter) -Freely customizable sequence of parameters FUNCTION - Controller DIMENSIONS - 48 x 96 mm DISPLAY - 2 display with 4 digit 3 dynamic colours POWER SUPPLY - 24 Vac/Vdc, 100… 240 Vac INPUTS - 0/1… 5 V, 0/2… 10 V, 0/4… 20 mA, Pt100, Pt1000, PTC-NTC, Thermocouple, Universal NUMBER OF OUTPUTS - 1, 2, 3, 4 OUTPUTS - Relay and/or SSR control DIGITAL INPUTS - 1, 2 INDEPENDENT TIMER - Yes INTERFACE - RS 485 Modbus Slave, TTL Modbus SPECIAL FUNCTIONS - Digital retransmission, Hours/Days worked, ON time, Power on delay, Soft start, Transmitter power supply, User calibration, Wattmeter CONTROL - ON/OFF and PID single or double action EXTRACTABILITY - Not extractable, With fix terminal block, With removable terminal block CERTIFICATIONS - CE, UL
