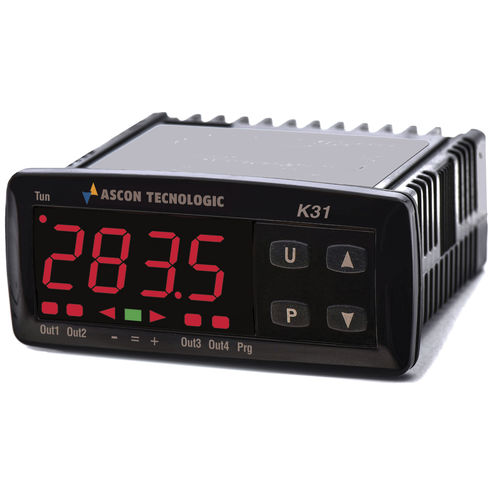

Digital temperature regulator K31

double LED displayPIDprogrammable

Mini-programmer controller with independent timer K Series: years of experience behind these versatile and performing instruments. Programming is carried out simply from the keyboard, via programming devices, or via a PC. The serial on board, with Modbus protocol, allows integration with control, supervision and monitoring systems. FUNCTION - Programmer, Controller DIMENSIONS - 78 x 35 mm DISPLAY - 1 display with 4 digit POWER SUPPLY - 12 Vac/Vdc, 24 Vac/Vdc, 100… 240 Vac INPUTS - 0/1… 5 V, 0/2… 10 V, 0/4… 20 mA, Pt100, PTC-NTC, Thermocouple NUMBER OF OUTPUTS - 1, 2, 3, 4 OUTPUTS - Relay and/or SSR control DIGITAL INPUTS - 1, 2 INDEPENDENT TIMER - Yes NUMBER OF PROGRAMS / SEGMENTS - 1 program with 8 segments INTERFACE - RS 485 Modbus Slave, TTL Modbus SPECIAL FUNCTIONS - Digital retransmission, Hours/Days worked, Power on delay, Soft start, Transmitter power supply, User calibration, Wattmeter CONTROL - ON/OFF and PID single or double action EXTRACTABILITY - Not extractable, With fix terminal block, With removable terminal block CERTIFICATIONS - CE, UL
