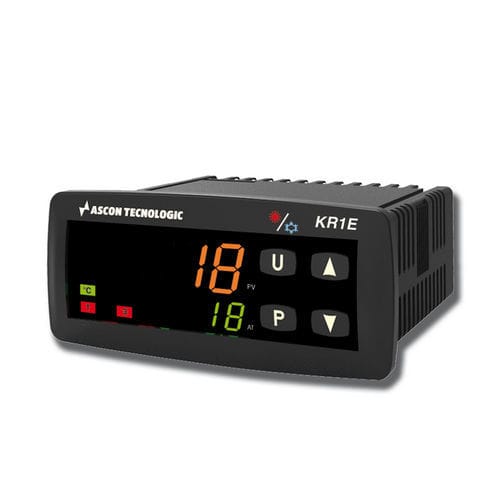

Temperature controller with LCD display KR1E

PIDULIP65

It is designed to meet the specific needs of the wine sector, for the heat treatment of wine and the different needs of cellars. It is designed for accurate temperature control during winemaking, which requires a cooling phase during fermentation, but also a heating phase necessary to obtain certain organoleptic characteristics. It is factory configured for standard wine applications (input for PT100, heating or cooling control, minimum and maximum alarm). A simple procedure is provided based on some parameters used to adapt this basic configuration to your needs, or to return to the factory configuration. FUNCTION - Controller DIMENSIONS - 78 x 35 mm DISPLAY - 2 display with 4 digit 3 dynamic colours POWER SUPPLY - 24 Vac/Vdc, 100… 240 Vac INPUTS - 0/1… 5 V, 0/2… 10 V, 0/4… 20 mA, NTC, Pt100, Pt1000, PTC-NTC, Thermocouple, Universal OUTPUTS - Relay and/or SSR control CONTROL - ON/OFF, PID with Autotuning EXTRACTABILITY - Not extractable, With fix terminal block CERTIFICATIONS - CE, UL
