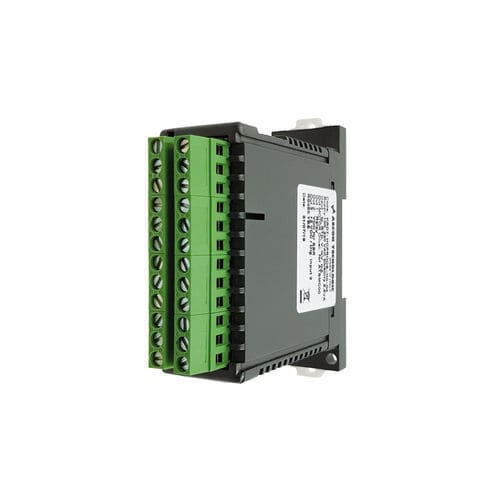

Programmer KRD3R

This version is able to retransmit, through the TTL or RS485 serial port, the appropriately scaled input value. This allows, if connected to other instruments of the Kube series, to retransmit a remote set point or a measurement that can be used for a possible compensation of the set point. Technical specifications Dimensions - 78 x 35 mm Power supply - 24 Vac/Vdc, 100… 240 Vac Number of outputs - 4 Outputs - Relay or voltage Special functions - Digital retransmission, Hours/Days worked, ON time, Power on delay, Soft start, Transmitter power supply, User calibration, Wattmeter Analog outputs in current or voltage - 1 Programmer - Yes Measurement or set point retransmission - Yes Certifications - CE, UL
