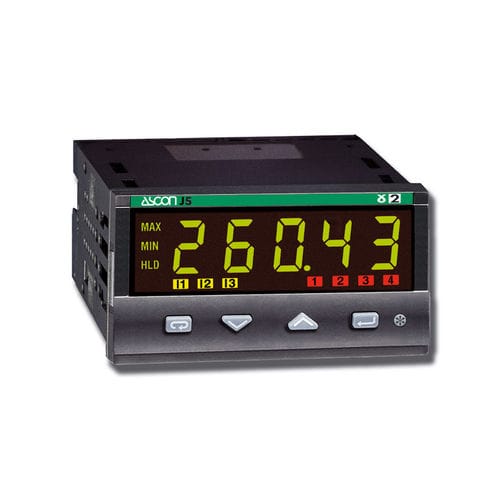

Process indicator J5

pressureload5-digit

Indicator – transmitter, strain gauge input for melt pressure and load cells This model provides accurate measurements of melt pressure and other process variables, with an accuracy of 0.1% and an overall response time of 20 ms. The main input is 350Ω strain gauge, linear direct voltage and direct current. 16-segment linearizer for square root extraction for “custom” input. The additional functions of analog retransmission, Modbus RS485 communication and delay alarms (type A ISA) make the J5 indicator ideal to meet the most demanding monitoring requirements. FUNCTION - Indicator, Transmitter DIMENSIONS - 96 x 48 mm DISPLAY - 1 display with 5 digit 2 config.colours POWER SUPPLY - 24 Vac/Vdc, 100… 240 Vac INPUTS - 0/1… 5 V, 0/2… 10 V, 0/4… 20 mA, Strain Gauge NUMBER OF OUTPUTS - 1, 2, 3, 4, 5 OUTPUTS - Relay and/or SSR control DIGITAL INPUTS - 1, 2, 3 RETRANSMISSION OUTPUT - 0/4… 20 mA INTERFACE - RS 232 Modbus Slave, RS 485 Modbus Slave SPECIAL FUNCTIONS - Mathematical functions, Transmitter power supply, User calibration EXTRACTABILITY - By the front MATHEMATICAL PACKAGE - Yes CERTIFICATIONS - CE, UL
